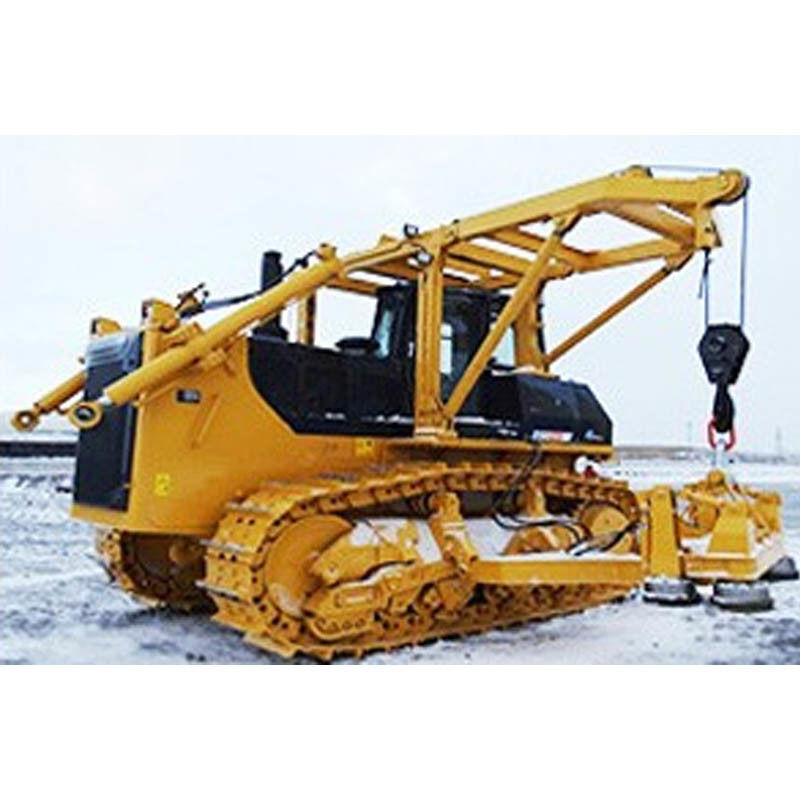

Crawler Pipe Handling Equipment Pipeline Pipe Unloading Equipment

Crawler Pipe Handling Equipment Pipeline Pipe Unloading Equipment

Crawler Pipeline Relocation Machine

Crawler Pipe Handling Equipments

Pipeline Pipe Unloading Equipment

Place of Origin:


Brand Name:




Contact Us

Request A Quote
Product Details
Material Science:
High Strength Manganese Steel
Power Supply:
Pipe Handling Equipment
Movement Direction:
Left, Right, Forward, Backward
Save Manpower, Time, And Costs
Applicable Industries:
Manufacturing Plant, Loading Equipment,
Payment & Shipping Terms
Minimum Order Quantity
1 set
Packaging Details
Delivery Time
7-15 work days
Payment Terms
Product Description

An Open-Air Construction Relocation Machine With Complete Safety Devices To Ensure Safe Relocation



The braking system of the driving system is safe and reliable: the steering clutch is a normally closed, hydraulic separated steering clutch. When the operator releases the lever, the clutch will close, ensuring safety and reliability; The brakes are wet, floating, and band brakes with hydraulic assistance. By tightening the brake band and gripping the outer drum of the steering clutch, the final drive gear terminates transmission, thereby achieving turning or parking of the vehicle. The brake band is made of materials with high friction coefficient, which increases the positive pressure of the brake band and ensures that the moving machine has sufficient braking force.



Equipment model PYS70-2
Engine model Cummins NTA855-C360
Maximum moving weight 16000 kg
Maximum lifting height 300 mm
Maximum moving distance 1000 mm
Suitable for steel rail specifications  50~75(GB 2585) kg/m
Quantity of counterweights × Weight 3×1550 kg

Walking speed

Forward 1st gear 3.6
Forward 2st gear 6.6
Forward 3st gear 11.5
Reverse 1st gear 4.4
Reverse 2st gear 7.8
Reverse 3st gear 13.5
Operation mode Handle operation
Moving head clamping indication Optional
Mobile head surveillance camera Optional
Switchable bulldozer 320 horsepower bulldozer




1) Complete safety devices to ensure safe relocation: The equipment is equipped with relocation head monitoring cameras, relocation head clamping instructions, and other relocation machine safety devices to ensure smooth and safe relocation work.

2) The engine adopts the Cummins engine (model NTA855-C360) manufactured with American technology, which adopts a unique PT fuel system and is turbocharged. It has the characteristics of light weight, high power, high torque, low fuel consumption, and easy maintenance.

3) High reliability of the transmission system: a bulldozer is used to modify the chassis, and a hydraulic torque converter with a large torque coefficient and smooth transmission is used. Easy maintenance of the transmission system: The transmission components are designed as modular assemblies, making disassembly and assembly easy and saving maintenance and assembly time.

Crawler Pipe Handling Equipment Pipeline Pipe Unloading Equipment 0

About Suhigo

  • As China Specialist in Pipeline Construction Equipment Manufacturing., Suhigo can offer premium pipelayers or sideboom to help achieve the target of lifting pipe, moving to position and placing pipe. Suhigo Pipelayer Family have full line lifting weight pipelayers equivalent to International Pipelayer brand, size ranging from 25tons to 90tons. With decades experience, all pipelayers are designed to full safety, reliable performance and easy operation, can work flexible with different size pipeline construction projects throughout the globle. Up to now, Suhigo have worked with Oil Construction companies of CNPC, Sinopec and CPP.
  • Looking to acquire brand new pipelayers or sidebooms for your tender ? Check out the latest introduction of Pipelayers from Suhigo. Except for brand new pipelayers, we may have some used pipelayers in stock with good quality, welcome to contact us for more information.


HGPC30 Crawler pipe carrier for Pipeline construction Yellow pipe carring equipment Pipe Dia 1219mm transporter trailer 2HGPC30 Crawler pipe carrier for Pipeline construction Yellow pipe carring equipment Pipe Dia 1219mm transporter trailer 3




Why choose suhigo?

1) Suhigo is professional manufacturer, obtained ISO9001, ISO14001, GB/T28001 HSE Certificates, and CE certificate.

2) Suhigo has rich project experience with CPP, CNPC and SINOPEC branch oil construction companies.

3) Pipelayer cabin can be provided with ROPS & FOPS certificates, for option.

4) Suhigo product has exported to Russia, Middle Asia, Middle East, Africa etc.

5) Suhigo factory covers 30,000m2 and has 100+ workers including office, workshop and field service personnel.
