380V 50HZ Pipeline Demagnetizer 12V Pipe Demagnetizing Equipment

50HZ Pipeline Demagnetizer

12V Pipe Demagnetizing Equipment

380V Pipeline Demagnetizer

Place of Origin:

China

Brand Name:

Suhigo

Certification:

ISO-9001 CE

Model Number:

HGXC

Request A Quote

380V 50HZ Pipeline Demagnetizer 12V Pipe Demagnetizing Equipment

Product Details

Overall Dimension:

500x400x450mm

Weight:

35Kg

Protection Alarm Function:

Available

Working Ambient Temperature:

-45~60

Name:

Pipeline Demagnetizer

Origin:

Hebei, China

Applicable Industries:

Building Material Stores, Mechanical Maintenance Stores

Payment & Shipping Terms

Minimum Order Quantity

1 pcs

Price

Negotiable

Packaging Details

Seaworthy- Integral wax spraying anti-corrosion

Delivery Time

30days

Payment Terms

T/T, L/C

Supply Ability

Construction period 15-30 days

2000A 12Kw Pipeline Demagnetizer Input Voltage 380V Pipeline Machines

Get Best Price

ISO 50HZ Pipeline Demagnetizer Pipe Demagnetizing Equipment

Get Best Price

Building Pipeline Demagnetizer 380VAC For Pipeline Construction

Get Best Price

Pipe Demagnetizing Equipment Pipeline Demagnetize Pipe For Welding

Get Best Price

86-156-1262-9000

sales@suhigo.com

86-22-60651386

Contact Now

Product Description

HGXC series pipe demagnetizer for pipeline construction before welding operations Working Ambient Temperature -45~60

Name: 380V 50HZ Pipeline Demagnetizer 12V Pipe Demagnetizing Equipment
Brand: Suhigo
SKU: HGXC
Rating: 4.7 (200 reviews)

HGXC series Input Voltage 380V Input Frequency 50HZ Consumption Power 12V white pipe demagnetizer

INTRODUCTION

A pipe demagnetizer is a device used in pipeline construction to remove or reduce the residual magnetism present in steel pipes. The demagnetization process is important because residual magnetism can interfere with the accurate functioning of instruments used in pipeline inspection, such as magnetic flux leakage (MFL) detectors.
Residual magnetism can occur in steel pipes due to various reasons, including the manufacturing process, transportation, and handling. The presence of magnetic fields can affect the accuracy of inspections, making it difficult to detect defects like corrosion or cracks.
A pipe demagnetizer works by applying an alternating current (AC) magnetic field to the steel pipe. This magnetic field gradually reduces the residual magnetism in the pipe, neutralizing any magnetic effects. The demagnetizer typically consists of a power source and a demagnetization coil. The coil is wrapped around the pipe, and the AC current flowing through it generates a magnetic field that gradually decreases the residual magnetism.
By using a pipe demagnetizer during pipeline construction, the steel pipes can be effectively demagnetized, ensuring accurate inspections and reliable testing for potential defects. This helps maintain the integrity and safety of the pipeline system, minimizing the risk of failures and ensuring the smooth operation of the pipeline network.

Main Parameters

Item	Unit	Main Parameters
Input Voltage	VAC	380
Input Frequency	HZ	50
Consumption Power	KW	12
Wiping Current	A	Up to 2000A
Demagnetized Field	Mt	500 (Port combination mode)
Protection Alarm Function	-	Available
Working Relative Humidity	%	≤95
Working Ambient Temperature	℃	-45~60
Overall Dimension	mm	500x400x450
Weight	kg	35

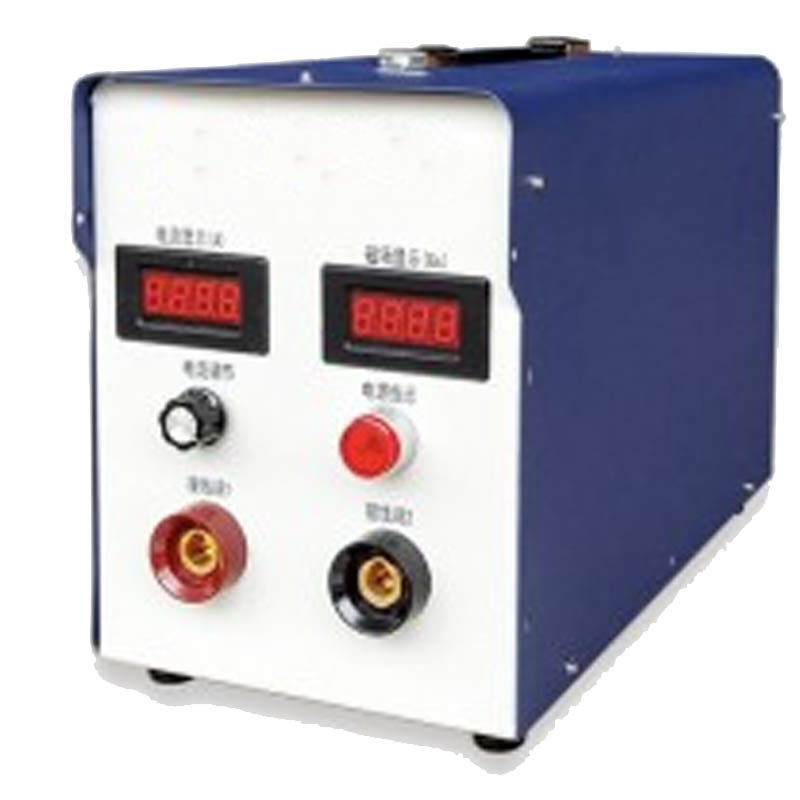

380V 50HZ Pipeline Demagnetizer 12V Pipe Demagnetizing Equipment 1

About Suhigo

As China Specialist in Pipeline Construction Equipment Manufacturing., Suhigo can offer premium pipelayers or sideboom to help achieve the target of lifting pipe, moving to position and placing pipe. Suhigo Pipelayer Family have full line lifting weight pipelayers equivalent to International Pipelayer brand, size ranging from 25tons to 90tons. With decades experience, all pipelayers are designed to full safety, reliable performance and easy operation, can work flexible with different size pipeline construction projects throughout the globle. Up to now, Suhigo have worked with Oil Construction companies of CNPC, Sinopec and CPP.
Looking to acquire brand new pipelayers or sidebooms for your tender ? Check out the latest introduction of Pipelayers from Suhigo. Except for brand new pipelayers, we may have some used pipelayers in stock with good quality, welcome to contact us for more information.

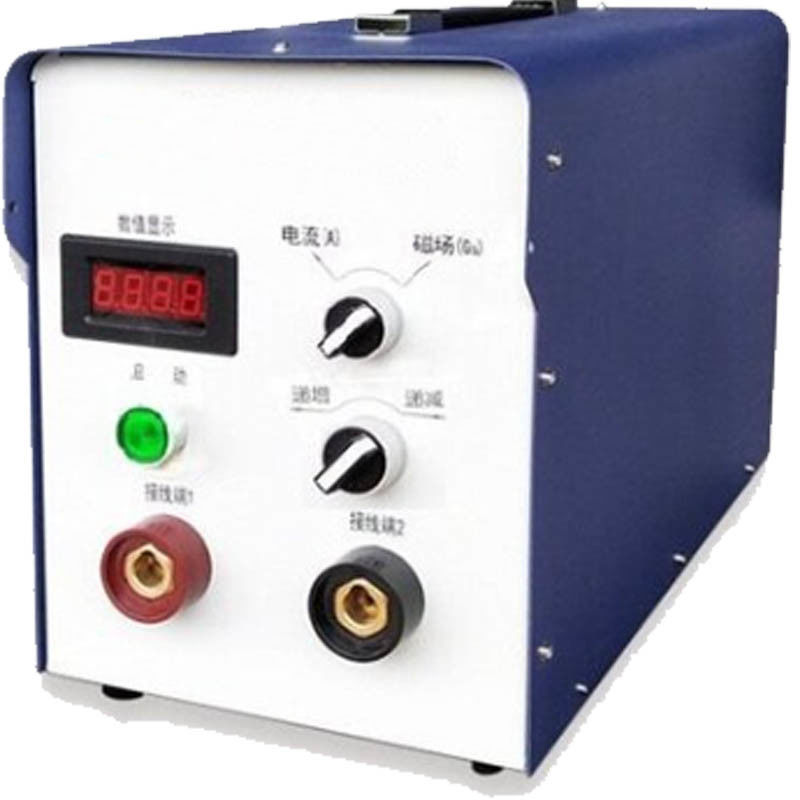

380V 50HZ Pipeline Demagnetizer 12V Pipe Demagnetizing Equipment 2

Why choose suhigo?

1) Suhigo is professional manufacturer, obtained ISO9001, ISO14001, GB/T28001 HSE Certificates, and CE certificate.

2) Suhigo has rich project experience with CPP, CNPC and SINOPEC branch oil construction companies.

3) Pipelayer cabin can be provided with ROPS & FOPS certificates, for option.

4) Suhigo product has exported to Russia, Middle Asia, Middle East, Africa etc.

5) Suhigo factory covers 30,000m2 and has 100+ workers including office, workshop and field service personnel.
