ISO Horizontal Earth Drilling Machine Laying 323m To 630m Pipes

ISO Horizontal Earth Drilling Machine Laying 323m To 630m Pipes

ISO Horizontal Earth Drilling Machine

horizontal earth boring machine

ISO horizontal earth boring machine

Place of Origin:


Brand Name:



ISO-9001 CE

Model Number:


Contact Us

Request A Quote
Product Details
Auger Boring Machine
Pushing Force:
Rated Power:
Power Pack Weight:
Hydraulic System:
Payment & Shipping Terms
Minimum Order Quantity
1 pcs
Packaging Details
Seaworthy- Integral wax spraying anti-corrosion
Delivery Time
Payment Terms
T/T, L/C
Product Description

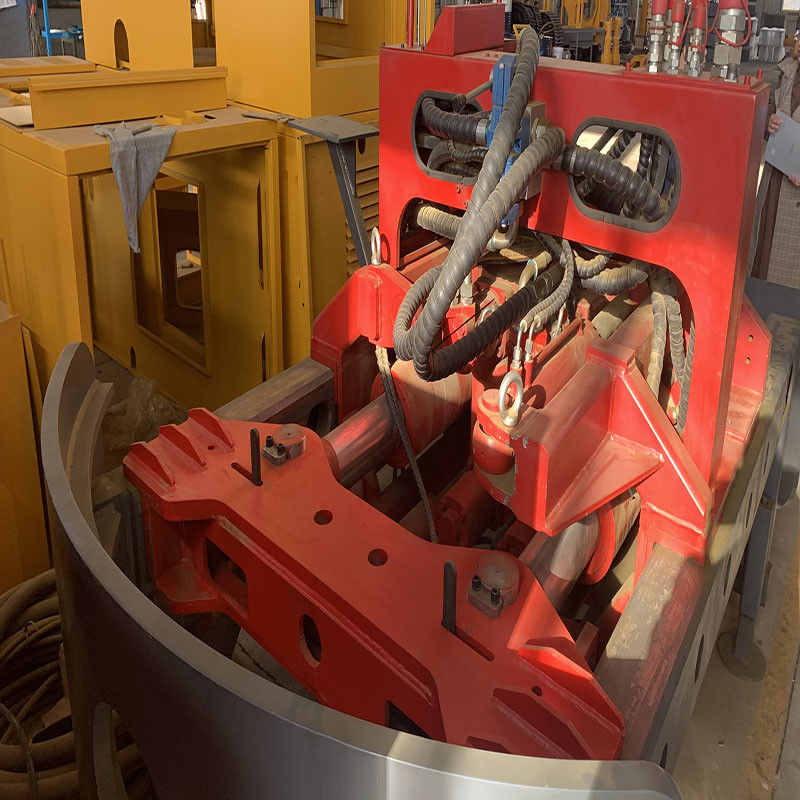

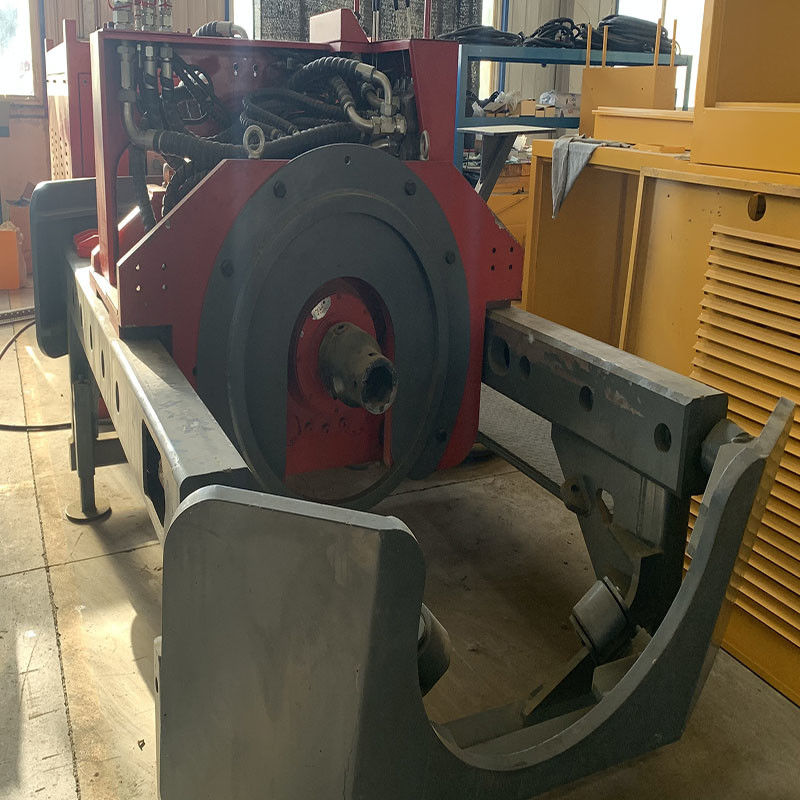

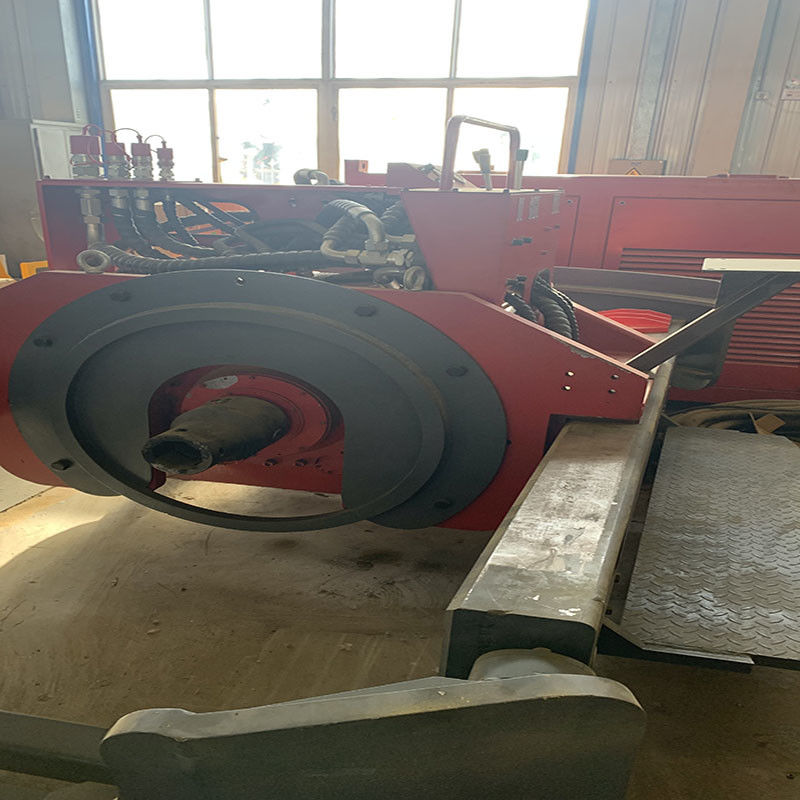

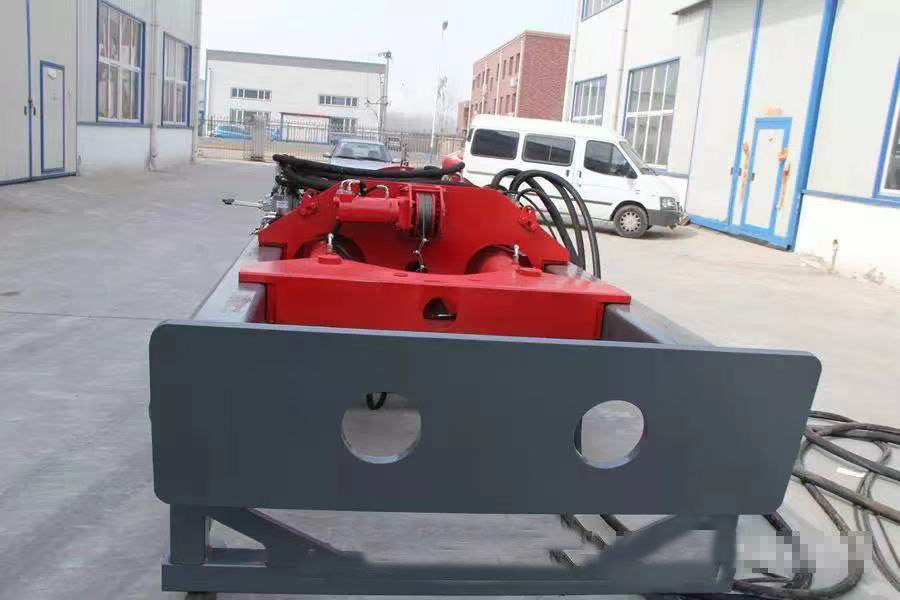

BGD-120S Auger Boring Machine

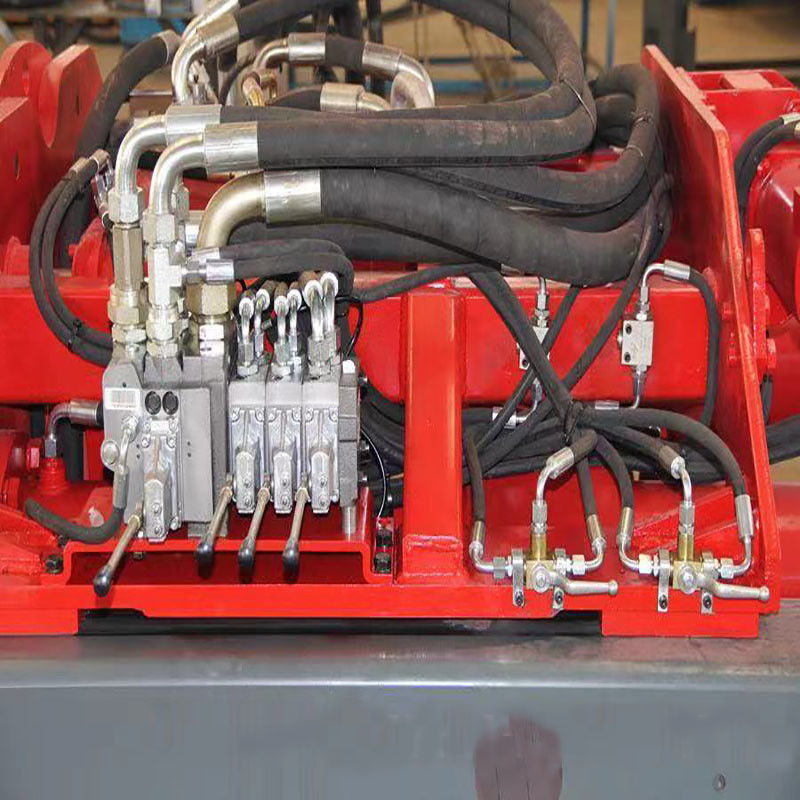

       The Model BGD-120S is lately put in our product line of guided auger boring pipe jacking drill rig.It is specially designed to be used at narrow operating site,with length of 3.2m,laying 323m to 630m product pipes,each pipe section of 1m.All the hydraulic parts used in this rig are globally well known barnds.The output rotating speeds and torques of the drill rig are adjustable according to drilled earth formation by operator.Customers have options to choose driving power of the drill rig between CUMMINS emission standard engine power and electric motor power.



DCEC Cummins QSB4.5-C160Ⅲ
Rated Output at 2200rpm(Kw) 119
Electric system(V) 24
Fuel tank capacity(L) 380
Hydraulic system(Mpa) 24
Auxiliary hydraulic system pressure(Mpa) 20
Hydr.oil tank capacity(L) 850
Max.torque at low speed(Nm) 24000
High rotating speed(r/min) 0-50
Low rotating speed(r/min) 0-25
One step stroke(mm) 300
Spindle clearance to ground(mm) 673
Rotary head drifting distance(mm) 320
Pushing speed(m/min) 0-0.5
Pushing force(t) 120
Duct tube diameter(optional)(mm) Ø325-Ø711
Dimension of power pack(mm) 2280*1890*1620
Power pack weight(Kg) 2400


ISO Horizontal Earth Drilling Machine Laying 323m To 630m Pipes 0


Why choose suhigo?


1) Suhigo is professional manufacturer, obtained ISO9001, ISO14001, GB/T28001 HSE Certificates, and CE certificate.

2) Suhigo has rich project experience with CPP, CNPC and SINOPEC branch oil construction companies.

3) Pipelayer cabin can be provided with ROPS & FOPS certificates, for option.

4) Suhigo product has exported to Russia, Middle Asia, Middle East, Africa etc.

5) Suhigo factory covers 30,000m2 and has 100+ workers including office, workshop and field service personnel.
