Place of Origin:
China
Brand Name:
Suhigo
Certification:
ISO-9001 CE
Model Number:
BGD-120S
Contact Us

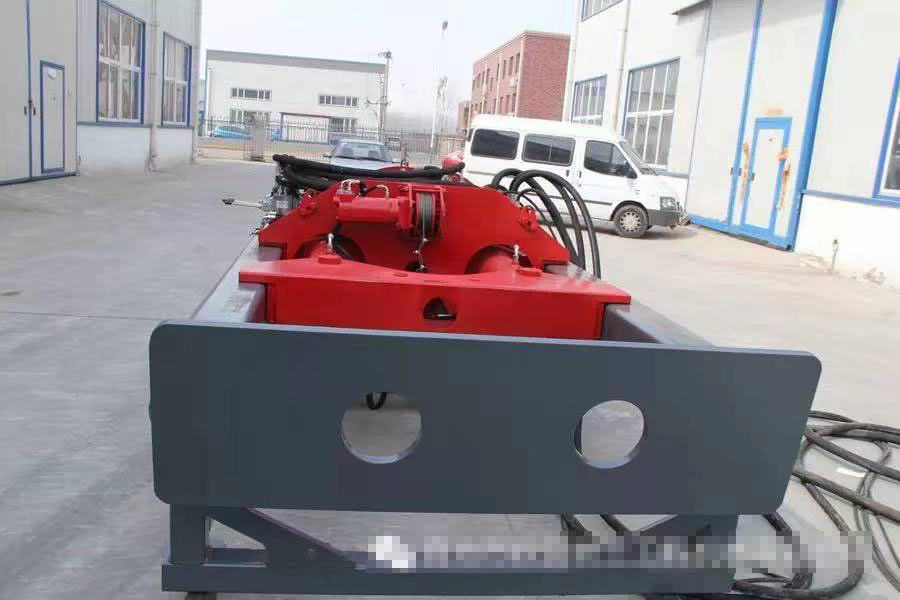

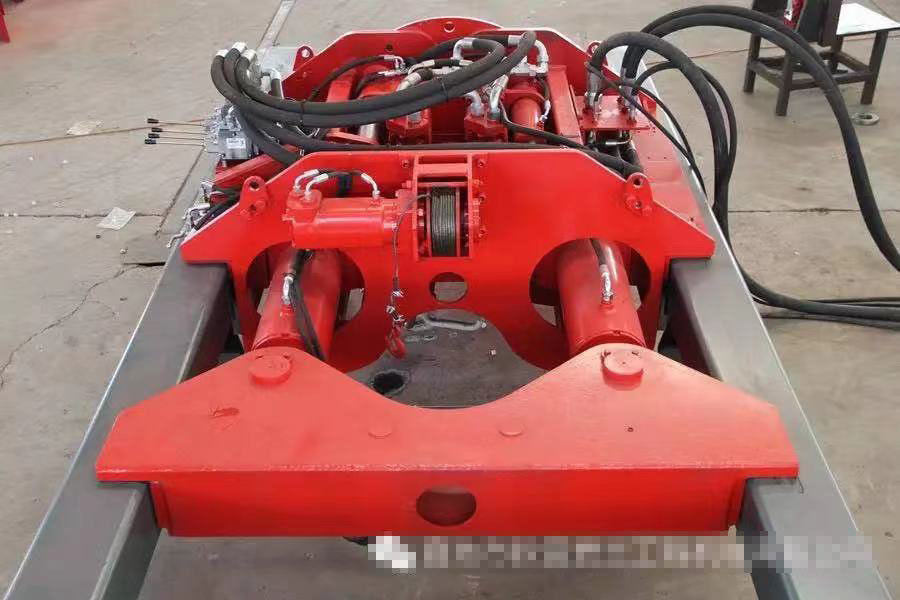

Energy Saving, Efficient And Flexible Drilling Rig For Laying Underground Pipelines
Introduction
The hydraulic system adopts international Zhiping hydraulic components, and its output speed and torque can be adjusted according to needs, making the work more energy-saving. The power form can also be selected as a diesel engine or electric motor according to one's own needs
| Engine | |
| DCEC Cummins | QSB4.5-C160Ⅲ |
| Rated Output at 2200rpm(Kw) | 119 |
| Electric system(V) | 24 |
| Fuel tank capacity(L) | 380 |
| Hydraulic system(Mpa) | 24 |
| Auxiliary hydraulic system pressure(Mpa) | 20 |
| Hydr.oil tank capacity(L) | 850 |
| Max.torque at low speed(Nm) | 24000 |
| High rotating speed(r/min) | 0-50 |
| Low rotating speed(r/min) | 0-25 |
| One step stroke(mm) | 300 |
| Spindle clearance to ground(mm) | 673 |
| Rotary head drifting distance(mm) | 320 |
| Pushing speed(m/min) | 0-0.5 |
| 0-1.25 | |
| Pushing force(t) | 120 |
| Duct tube diameter(optional)(mm) | Ø325-Ø711 |
| Dimension of power pack(mm) | 2280*1890*1620 |
| Power pack weight(Kg) | 2400 |
1. High rock breaking efficiency:
The special design of a large eccentric cone crusher can improve the efficiency of secondary crushing and also make it easier to discharge rock blocks.
2. Good construction operability:
The lifting speed and slurry flow can be continuously adjusted, making it easier to achieve a balance between the lifting speed and slurry flow transportation.
