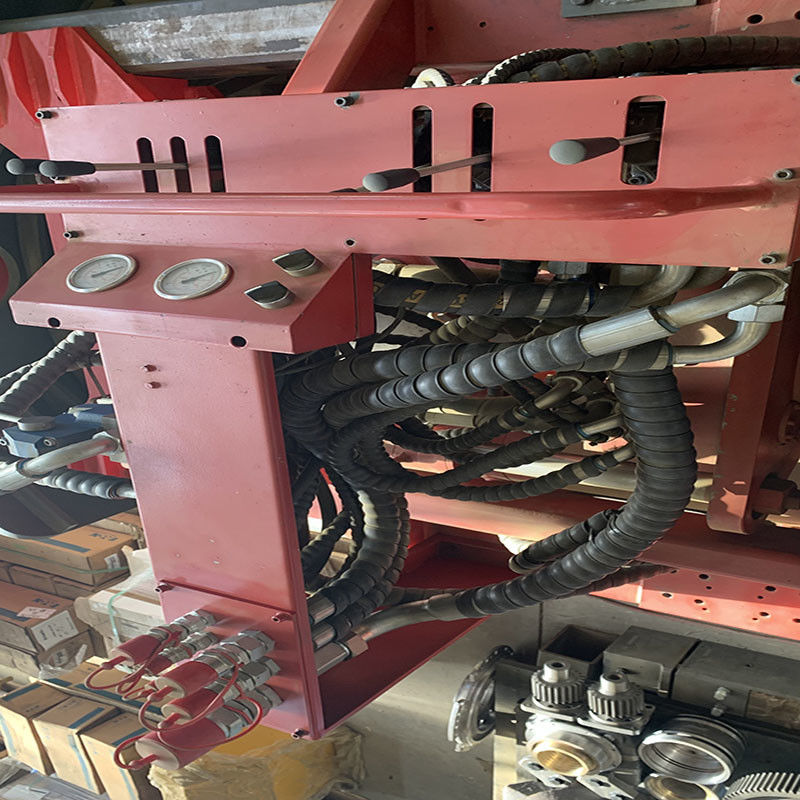

Trenchless Underground Auger Boring Machine Pipe Jacking Machine Sale
Introduction
The Model BGD-120S is lately put in our product line of guided auger boring pipe jacking drill rig.It is specially designed to be used at narrow operating site,with length of 3.2m,laying 323m to 630m product pipes,each pipe section of 1m.All the hydraulic parts used in this rig are globally well known barnds.The output rotating speeds and torques of the drill rig are adjustable according to drilled earth formation by operator.Customers have options to choose driving power of the drill rig between CUMMINS emission standard engine power and electric motor power.
| Engine | |
| DCEC Cummins | QSB4.5-C160Ⅲ |
| Rated Output at 2200rpm(Kw) | 119 |
| Electric system(V) | 24 |
| Fuel tank capacity(L) | 380 |
| Hydraulic system(Mpa) | 24 |
| Auxiliary hydraulic system pressure(Mpa) | 20 |
| Hydr.oil tank capacity(L) | 850 |
| Max.torque at low speed(Nm) | 24000 |
| High rotating speed(r/min) | 0-50 |
| Low rotating speed(r/min) | 0-25 |
| One step stroke(mm) | 300 |
| Spindle clearance to ground(mm) | 673 |
| Rotary head drifting distance(mm) | 320 |
| Pushing speed(m/min) | 0-0.5 |
| 0-1.25 | |
| Pushing force(t) | 120 |
| Duct tube diameter(optional)(mm) | Ø325-Ø711 |
| Dimension of power pack(mm) | 2280*1890*1620 |
| Power pack weight(Kg) | 2400 |
1. High reliability:
The hydraulic overload protection system is reliable, safer, and has good waterproof performance.
2. Strong geological adaptability:
The speed can be adjusted without the need for slope, and different cutting wheels can be designed for different geological conditions. Therefore, it has strong adaptability.
3. High rock breaking efficiency:
The special design of a large eccentric cone crusher can improve the efficiency of secondary crushing and also make it easier to discharge rock blocks.
4. Good construction operability:
The lifting speed and slurry flow can be continuously adjusted, making it easier to achieve a balance between the lifting speed and slurry flow transportation.
