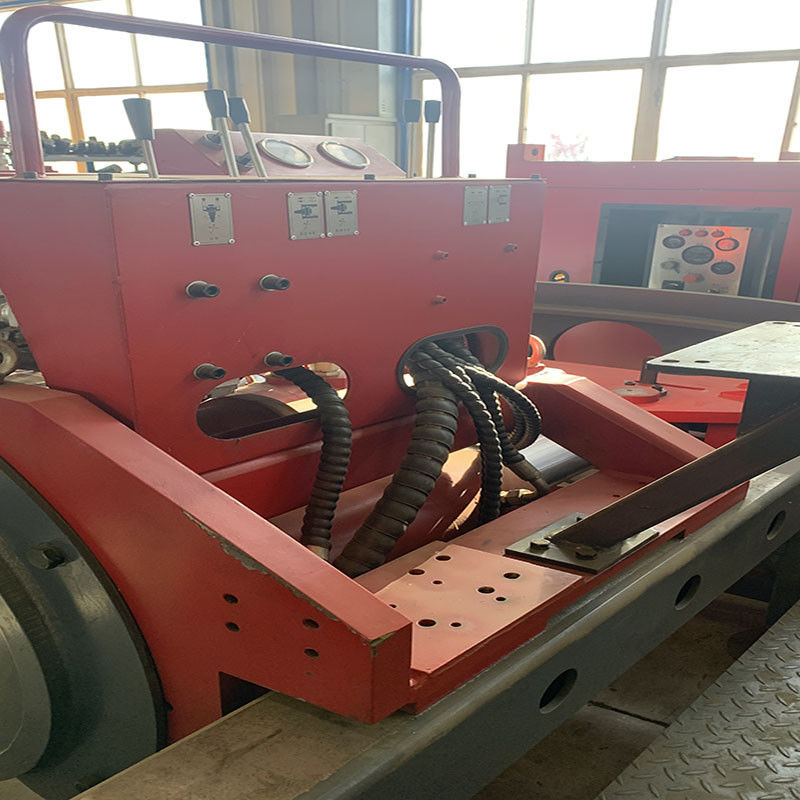

120 Tonne Guided Auger Boring Machine Horizontal Hole Digger

120 Tonne Guided Auger Boring Machine Horizontal Hole Digger

120 Tonne Guided Auger Boring Machine

120 Tonne Horizontal Hole Digger

Guided Horizontal Hole Digger

Place of Origin:

China

Brand Name:

Suhigo

Certification:

ISO-9001 CE

Model Number:

BGD-120S

Contact Us

Request A Quote
Product Details
Rated Power:
119kw
Dimension:
2280*1890*1620
Power Pack Weight:
2400KG
Hydraulic System:
24Mpa
Applicable Industries:
Architectural Engineering
Core Components:
Controller, Motor
Application:
Ordinary Soil, Sand, Clay
Payment & Shipping Terms
Minimum Order Quantity
1 pcs
Price
Negotiable
Packaging Details
Seaworthy- Integral wax spraying anti-corrosion
Delivery Time
70days
Payment Terms
T/T, L/C
Product Description

Advanced Optical Navigation Target Technology Guided Spiral Horizontal Drilling Machine




Introduction



The horizontal directional drilling rig saves time and money for users in operation. The drilling of the horizontal directional drilling rig is safe and fast. Generally, the corresponding power is configured according to the user's selection. It can operate continuously without heating the machine. It is safe and reliable to operate by one person





Engine
DCEC Cummins QSB4.5-C160Ⅲ
Rated Output at 2200rpm(Kw) 119
Electric system(V) 24
Fuel tank capacity(L) 380
Hydraulic system(Mpa) 24
Auxiliary hydraulic system pressure(Mpa) 20
Hydr.oil tank capacity(L) 850
Max.torque at low speed(Nm) 24000
High rotating speed(r/min) 0-50
Low rotating speed(r/min) 0-25
One step stroke(mm) 300
Spindle clearance to ground(mm) 673
Rotary head drifting distance(mm) 320
Pushing speed(m/min) 0-0.5
0-1.25
Pushing force(t) 120
Duct tube diameter(optional)(mm) Ø325-Ø711

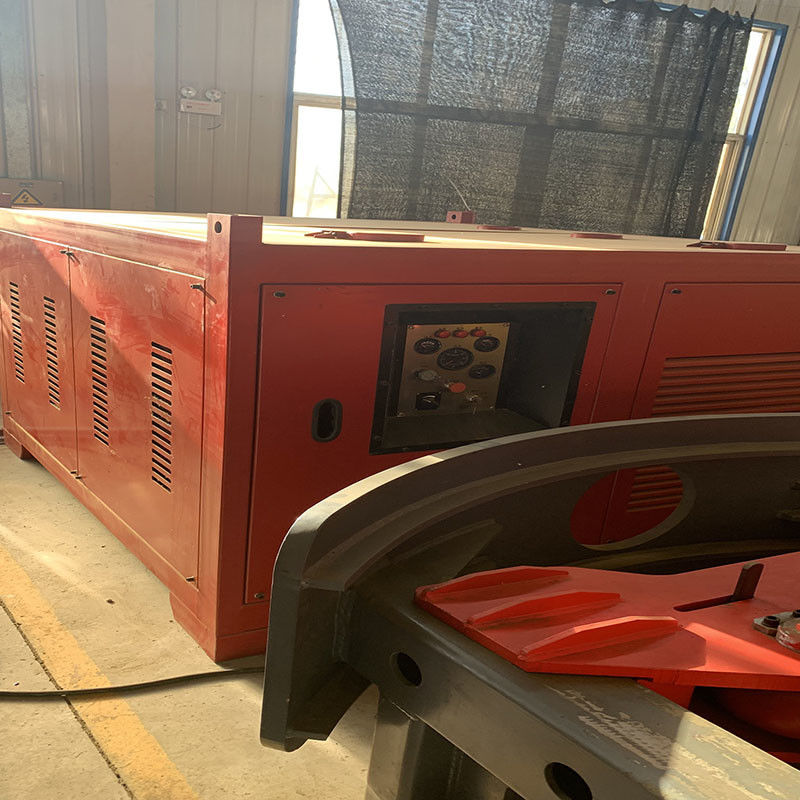

Dimension of power pack(mm) 2280*1890*1620
Power pack weight(Kg) 2400



1. High reliability:

The hydraulic overload protection system is reliable, safer, and has good waterproof performance.

2. Strong geological adaptability:

The speed can be adjusted without the need for slope, and different cutting wheels can be designed for different geological conditions. Therefore, it has strong adaptability.

3. High rock breaking efficiency:

The special design of a large eccentric cone crusher can improve the efficiency of secondary crushing and also make it easier to discharge rock blocks.

4. Good construction operability:

The lifting speed and slurry flow can be continuously adjusted, making it easier to achieve a balance between the lifting speed and slurry flow transportation.



120 Tonne Guided Auger Boring Machine Horizontal Hole Digger 0





About Suhigo



  • As China Specialist in Pipeline Construction Equipment Manufacturing., Suhigo can offer premium pipelayers or sideboom to help achieve the target of lifting pipe, moving to position and placing pipe. Suhigo Pipelayer Family have full line lifting weight pipelayers equivalent to International Pipelayer brand, size ranging from 25tons to 90tons. With decades experience, all pipelayers are designed to full safety, reliable performance and easy operation, can work flexible with different size pipeline construction projects throughout the globle. Up to now, Suhigo have worked with Oil Construction companies of CNPC, Sinopec and CPP.
  • Looking to acquire brand new pipelayers or sidebooms for your tender ? Check out the latest introduction of Pipelayers from Suhigo. Except for brand new pipelayers, we may have some used pipelayers in stock with good quality, welcome to contact us for more information.







HGHJ1219 welding Preheat Equipment for pipe size 1219mm weight 35KG pipeline Preheater Made in China 1HGHJ1219 welding Preheat Equipment for pipe size 1219mm weight 35KG pipeline Preheater Made in China 2







Why choose suhigo?

1) Suhigo is professional manufacturer, obtained ISO9001, ISO14001, GB/T28001 HSE Certificates, and CE certificate.

2) Suhigo has rich project experience with CPP, CNPC and SINOPEC branch oil construction companies.

3) Pipelayer cabin can be provided with ROPS & FOPS certificates, for option.

4) Suhigo product has exported to Russia, Middle Asia, Middle East, Africa etc.

5) Suhigo factory covers 30,000m2 and has 100+ workers including office, workshop and field service personnel.
