Product Name:

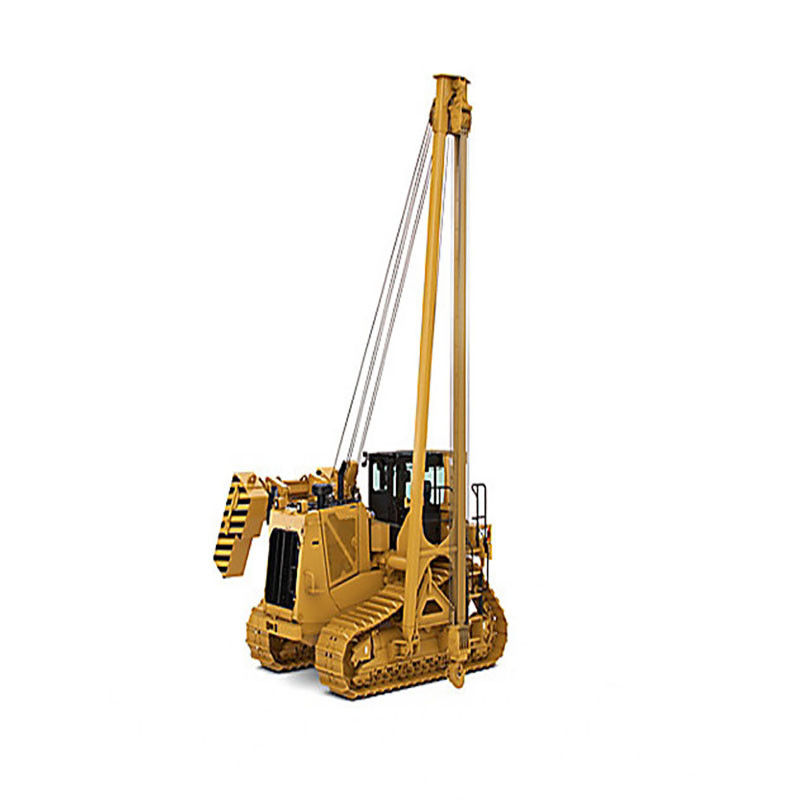

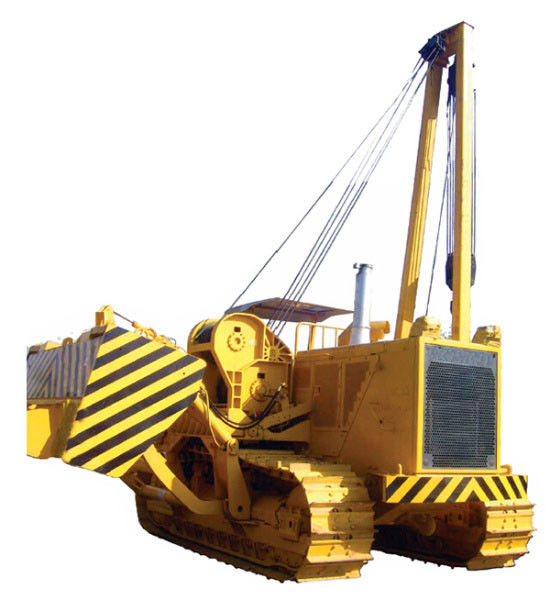

HGY70 Pipe Layer
Certification:
ISO9001 OHSAS18001 CE
Applicable Industries:
Farms, Retail, Construction Works , Energy & Mining
Chassis:
140-2
Size:
5630×3400×3540mm
Applicable Temperature:
-45℃~+60℃
Color:
Yellow And Red
Transmission:
Planetary Gears, Forced Lubrication Power Shift
Payment & Shipping Terms
Minimum Order Quantity
1 pcs
Price
Negotiable
Packaging Details
Seaworthy- Integral wax spraying anti-corrosion
Delivery Time
70days
Payment Terms
T/T, L/C
Product Description

Made in China Side Boom Large Pipelayer HGY Series For pipeline construction






INTRODUCTION

HGY70 hydraulic crawler pipelayer is a mature product developed according to the market demand and combined with the experience of the original pipelayer. This series of products adopts the domestic well-known Shantui crawler-type pipelayer special chassis, the transmission system is a trinity hydraulic transmission mode of engine, torque converter and gearbox, and the power equipment is Cummins series engines of domestic well-known brands. A low-temperature starting device is added to the whole machine, and the working device adopts full hydraulic drive, which mainly realizes three actions: lifting and lowering of the hook; swinging of the boom; lifting and lowering of the counterweight. An integral hydraulic winch drives the boom and hook separately. The jib is made of low-alloy high-strength steel and has a strong box-section welded structure. The pipelayer is equipped with a pipelayer intelligent monitor, hook automatic limit device and boom automatic limit device to monitor and control the working conditions of the pipelayer in real time. The pipelayer series products have good fretting performance and have the function of fast hook drop.

HGY70(70Tons)Technical parameters of crawler pipelayer

project name main parameters
Device model HGY70
Maximum lifting capacity t 70
Rated lifting capacity t 59.5
Machine mass t 49
Host transportation dimensions (length × width × height) mm 5660×3400×3540(mm)
Host transport mass t 37.5
Average ground specific pressure kPa 87.3
Minimum ground clearance mm 550
Maximum gradeability ° 25
Applicable environment Meet the ambient temperature of -45℃~+70℃ and the environment below 3600m above sea level
Engine model

Cuminns NTA855-C360

Cummins QSNT-C345

Rated power kW 257
Rated speed rpm 2000
Walk System chassis Chassis for pipelayers
Operation method joystick
Speed Forward km/h 3.6/6.6/11.5
Backward km/h 4.4/7.8/13.5
Track ground length mm 3620
Track center distance mm 2380
Track shoe width mm 760
Number of rollers 9×2

lifting

system

luffing form Wire Rope Luffing
Operation method Hydraulic control handle
Boom Arm length mm 8600/9600(optional)
Maximum Lifting Height mm 7050/8030
Boom Luffing Angle ° 0~86
Hook speed (8 times) m/min 0~7.0
Amplitude change time (5 times) s 32
Executive standard ISO8813









Feature

The lifting system adopts open hydraulic transmission with gear pump oil supply with strong anti pollution ability and self-priming ability, with stable transmission, stepless speed change, good micro motion performance and strong adaptability.
The lifting hook and boom luffing are controlled by hydraulic winch, and the counterweight retraction and release are controlled by hydraulic oil cylinder, which meets the requirements for efficiency and accuracy during pipe crane operation.
The boom is welded with HG60 high-strength steel, with light weight and high strength.
