45T Crawler Pipelayer Sideboom 45 Tons Construction Works Use

45T Crawler Pipelayer Sideboom 45 Tons Construction Works Use

45T Pipelayer

45T Crawler Pipelayer

Pipelayer Sideboom 45 Tons

Place of Origin:

China

Brand Name:

Suhigo

Certification:

CE

Model Number:

HGY45

Contact Us

Request A Quote
Product Details
Product Name:
HGY45 Pipe Layer
Certification:
ISO9001 OHSAS18001 CE
Applicable Industries:
Farms, Retail, Construction Works , Energy & Mining
Color:
Yellow
Mobile Type:
Tracked Construction Machinery
Size:
5630×3436×3540mm
Applicable Temperature:
-45℃~+60℃
Transmission:
Planetary Gears, Forced Lubrication Power Shift
Payment & Shipping Terms
Minimum Order Quantity
1 pcs
Price
Negotiable
Packaging Details
Seaworthy- Integral wax spraying anti-corrosion
Delivery Time
70days
Payment Terms
T/T, L/C
Product Description

HGY 45 Made In China Pipelayer 45 Tons Side Boom Large Crawler pipelayer

Itroduction

1.HGY series pipelayers provided by our company is a specialized pipeline construction equipment, mainly used in lifting, transportation and laying of pipeline .
2.The equipment adopts the special chassis of the pipelayer developed based on the bulldozer chassis,
3.Walking system adopts mechanical transmission and lever operation.
4.Working device adopts hydraulic transmission, operated handle , the transmission efficiency is high, and the work is stable. It is an international popular pipelayer configuration.





Device model HGY25 HGY45 HGY70 HGY90 HGY105

Maximum

Lifting Capacity t

25 45 70 90 105
quality (approx.) t 22 35 49.5 55 62
Host transport size mm 4135×3050×3015 4750×3350×3270 5906×3334×3100 5906×3354×3100 6045×4120×3980
host transport quality t 18.5 26 37.5 38.9 42.5

Minimum ground clearance

mm

480 490 550 550 575
gauge mm 2050 2250 2380 2490 2550
Track shoe width mm 560 660 760 860 860
engine WEICHAI CUMMINS CUMMINS CUMMINS CUMMINS
power/speed kW /rpm 131/2200 183/ 2000 257/2000 257/2000 310/2000
Arm lengt(customizable)mm 6000 7500 8600 9600 9600





Feature



The lifting system adopts open hydraulic transmission with gear pump oil supply with strong anti pollution ability and self-priming ability, with stable transmission, stepless speed change, good micro motion performance and strong adaptability.
The lifting hook and boom luffing are controlled by hydraulic winch, and the counterweight retraction and release are controlled by hydraulic oil cylinder, which meets the requirements for efficiency and accuracy during pipe crane operation.
The boom is welded with HG60 high-strength steel, with light weight and high strength.

With decades experience, all pipelayers are designed to full safety, reliable performance and easy operation, can work flexible with different size pipeline construction projects throughout the globle. Up to now, Suhigo have worked with Oil Construction companies of CNPC, Sinopec and CPP.

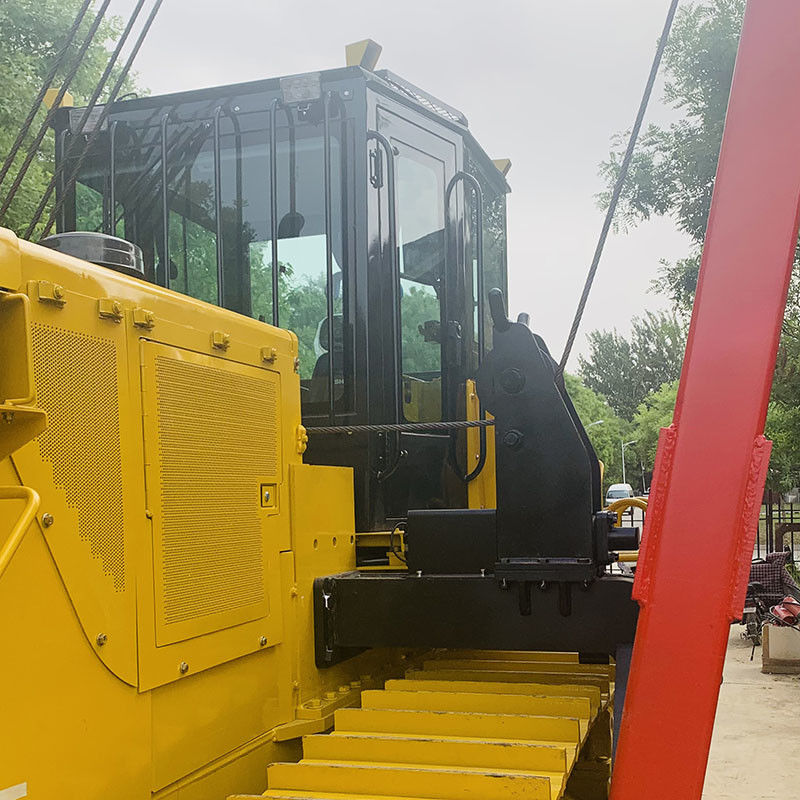

45T Crawler Pipelayer Sideboom 45 Tons Construction Works Use 0







About Suhigo

  1. As China Specialist in Pipeline Construction Equipment Manufacturing., Suhigo can offer premium pipelayers or sideboom to help achieve the target of lifting pipe, moving to position and placing pipe. Suhigo Pipelayer Family have full line lifting weight pipelayers equivalent to International Pipelayer brand, size ranging from 25tons to 90tons. With decades experience, all pipelayers are designed to full safety, reliable performance and easy operation, can work flexible with different size pipeline construction projects throughout the globle. Up to now, Suhigo have worked with Oil Construction companies of CNPC, Sinopec and CPP.
  2. Looking to acquire brand new pipelayers or sidebooms for your tender ? Check out the latest introduction of Pipelayers from Suhigo. Except for brand new pipelayers, we may have some used pipelayers in stock with good quality, welcome to contact us for more information.

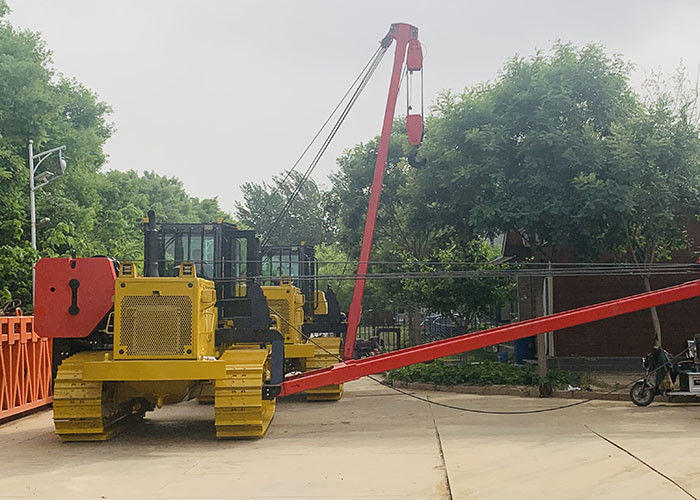

45T Crawler Pipelayer Sideboom 45 Tons Construction Works Use 1

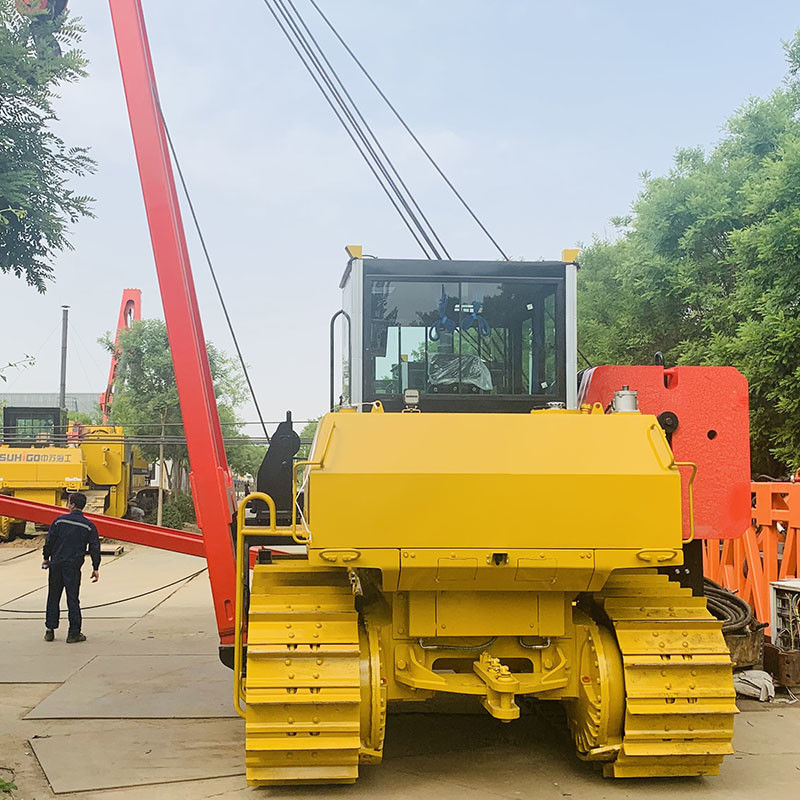

45T Crawler Pipelayer Sideboom 45 Tons Construction Works Use 2





Why choose suhigo?

1) Suhigo is professional manufacturer, obtained ISO9001, ISO14001, GB/T28001 HSE Certificates, and CE certificate.

2) Suhigo has rich project experience with CPP, CNPC and SINOPEC branch oil construction companies.

3) Pipelayer cabin can be provided with ROPS & FOPS certificates, for option.

4) Suhigo product has exported to Russia, Middle Asia, Middle East, Africa etc.

5) Suhigo factory covers 30,000m2 and has 100+ workers including office, workshop and field service personnel.



Looking to acquire brand new pipelayers or sidebooms for your tender ? Check out the latest introduction of Pipelayers from Suhigo. Except for brand new pipelayers, we may have some used pipelayers in stock with good quality, welcome to contact us for more information.

Design concept: to provide customers with safe and efficient construction products
