70 Ton Pipelayer Sidebooms Pipeline Construction Machinery HGY70

70 Ton Pipelayer Sidebooms Pipeline Construction Machinery HGY70

70 Ton Pipelayer

70 Ton sidebooms Pipeline Construction

70T Pipelayer Sidebooms

Place of Origin:

China

Brand Name:

Suhigo

Certification:

CE

Model Number:

HGY70

Contact Us

Request A Quote
Product Details
Product Name:
Pipe Layer
Mobile Type:
Tracked Construction Machinery
Selling Point::
High Operational Efficiency
Color:
Yellow
Origin:
Langfang, Hebei
Transmission:
Planetary Gears, Forced Lubrication Power Shift
Certification:
ISO9001 OHSAS18001 CE
Applicable Industries:
Farms, Retail, Construction Works , Energy & Mining
Payment & Shipping Terms
Minimum Order Quantity
1 pcs
Price
Negotiable
Packaging Details
Seaworthy- Integral wax spraying anti-corrosion
Delivery Time
70days
Payment Terms
T/T, L/C
Product Description

Pipelayers Side Boom Pipeline Construction Industry HGY70 Made In China

Itroduction

  • This series of products is an important construction equipment in the construction of oil and gas pipelines, mainly used for pipe layout, matching and trenching operations of large-diameter pipes.

    In addition to the function of pipelayer, this product can also be used for pipe-hanging walking and docking operations in the construction of pipeline networks such as petroleum, natural gas, chemical industry, and water conservancy.

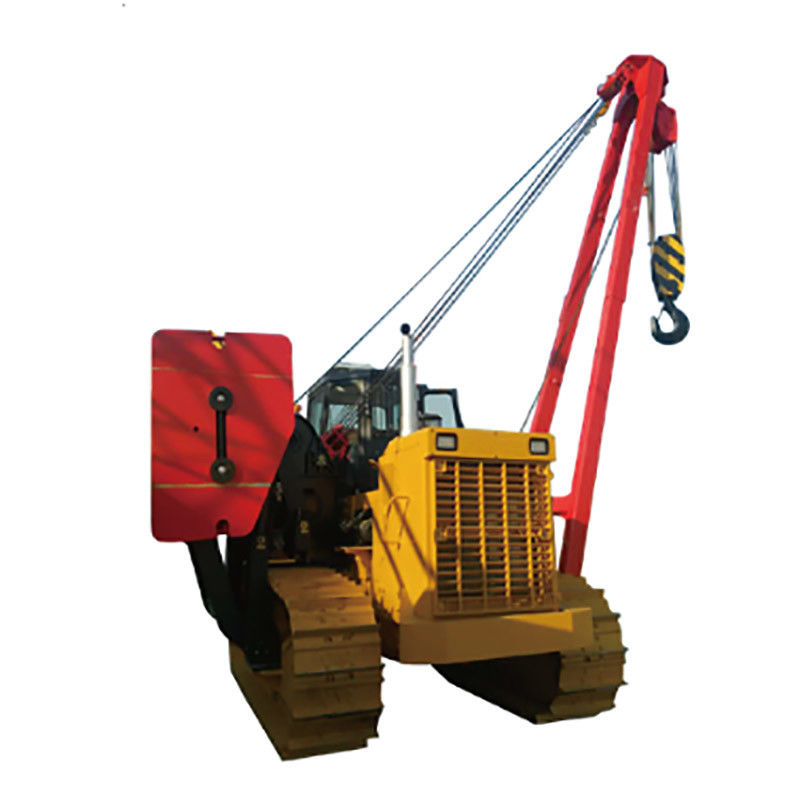

70 Ton Pipelayer Sidebooms Pipeline Construction Machinery HGY70 0



Technical Features of Suhigo Pipelayer:



1) The high-strength pipelayer special chassis adopts large gauge design to improve the stability of the whole machine, making it more suitable for the side lifting condition

2) Complete safety devices to ensure lifting safety

3) Smooth transmission system

4) The hoisting system adopts full hydraulic transmission, with stable transmission and good fretting performance

5) Simple and convenient operation; Strong adaptability



Technical parameters

Model HGY25 HGY45 HGY70
Maximum lifting capacity 25t/ 55000lb 45t/ 100000lb 70t/ 154000lb
Rated lifting weight 20t/ 44000lb 38t/83000lb 59t/ 130000lb
Operating Weight 22t/ 48500lb 35t/77000lb 49t/ 108000lb
Overall size(mm) 4150×3050×3250 4855×3384×3270 5630×3400×3540
Host transportation quality 21.5t 26t 37.5t
Average grounding ratio 76.4KPa 85.2KPa 87.3KPa
Minimum ground clearance 480mm 490mm 550mm
Maximum climbing ability 25° 25° 25°
Applicable temperature -45~+60 -45~+60 -45~+60





Engine

Model SDEC SC11CB Cummins NT855-C280 Cummins NT855-C360
Rated power 120KW 169KW 257KW
Rated speed 1850rpm 2000rpm 2000rpm

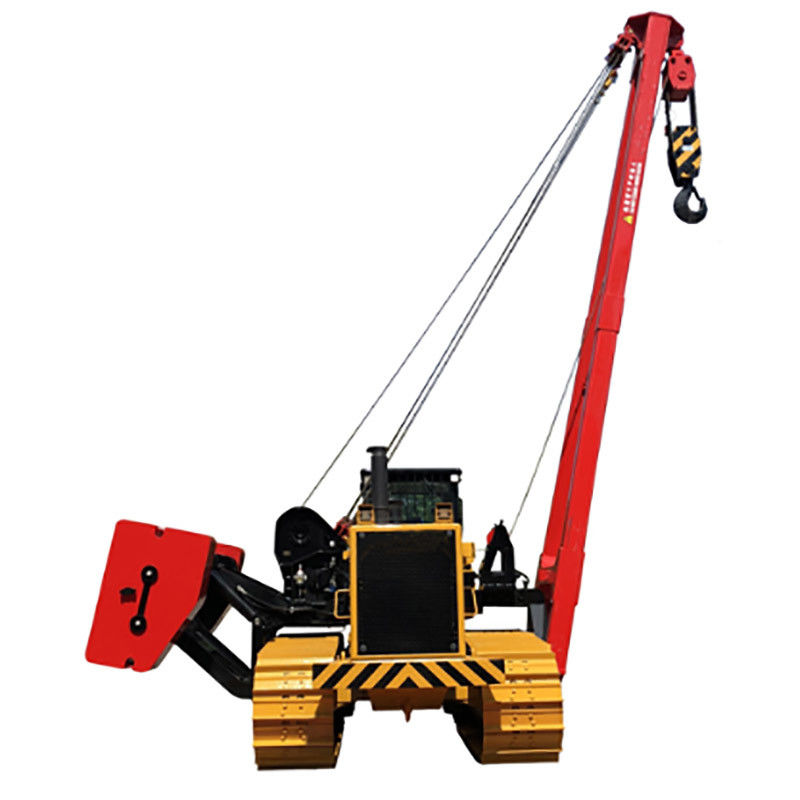

70 Ton Pipelayer Sidebooms Pipeline Construction Machinery HGY70 1







About Suhigo

  1. As China Specialist in Pipeline Construction Equipment Manufacturing., Suhigo can offer premium pipelayers or sideboom to help achieve the target of lifting pipe, moving to position and placing pipe. Suhigo Pipelayer Family have full line lifting weight pipelayers equivalent to International Pipelayer brand, size ranging from 25tons to 90tons. With decades experience, all pipelayers are designed to full safety, reliable performance and easy operation, can work flexible with different size pipeline construction projects throughout the globle. Up to now, Suhigo have worked with Oil Construction companies of CNPC, Sinopec and CPP.
  2. Looking to acquire brand new pipelayers or sidebooms for your tender ? Check out the latest introduction of Pipelayers from Suhigo. Except for brand new pipelayers, we may have some used pipelayers in stock with good quality, welcome to contact us for more information.



Engine HGY25 HGY45 HGY70 HGY90
Model SDEC SC11CB Cummins NT855-C280 NT855-C360 Cummins NT855-C360
Rated Power 120kw / 160hp 169kw /225hp 257kw / 340hp 257kw / 340hp
Rated Speed 1850RPM 2000rpm 2000rpm 2000rpm



Lifting System HGY25 HGY45 HGY70 HGY90
Variable Mode Wire Rope Luffing Wire Rope Luffing Wire Rope Luffing Wire Rope Luffing
Operation Mode Hydraulic Control, Joystick Hydraulic Control, Joystick Hydraulic Control, Joystick Hydraulic Control, Joystick
Boom-Length 6000mm 7500 / 8500mm 7600 / 8600mm 8600 / 9600mm
Boom-Lifting Height 4909mm 6100 / 7050mm 7600 / 8600mm 7050 / 9600mm
Boom Angle 0~85° 0~86° 0~86° 0~86°
Hook Speed (6~8times rate) 0~12.0m/min 0~6.2m/min 0~7.0m/min 0~7.0m/min
Luffting Time (4~5times) 25S 20s 32s 40s

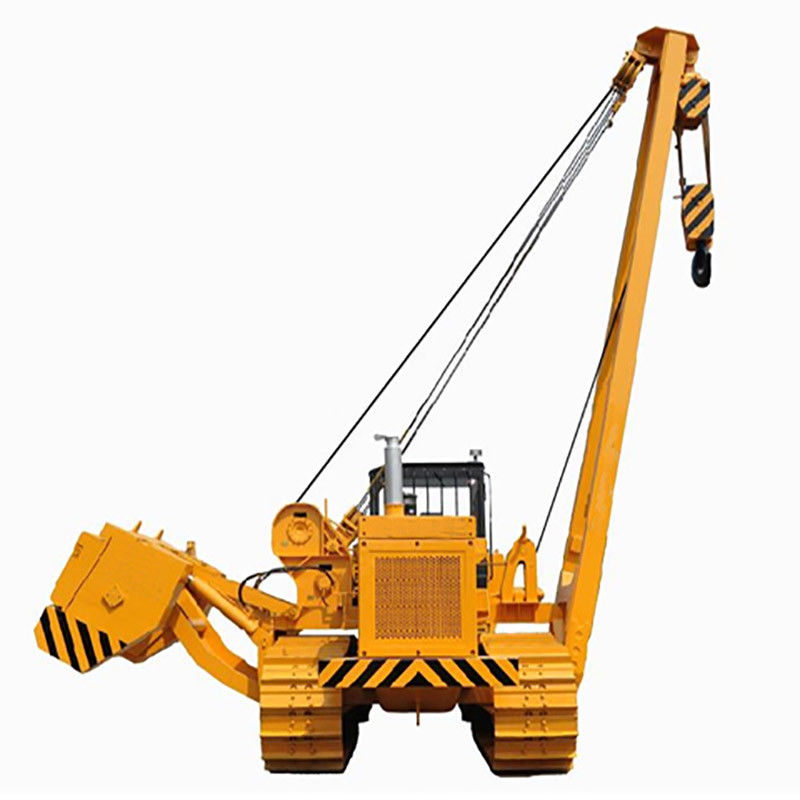

70 Ton Pipelayer Sidebooms Pipeline Construction Machinery HGY70 2

70 Ton Pipelayer Sidebooms Pipeline Construction Machinery HGY70 3





Why choose suhigo?

1) Suhigo is professional manufacturer, obtained ISO9001, ISO14001, GB/T28001 HSE Certificates, and CE certificate.

2) Suhigo has rich project experience with CPP, CNPC and SINOPEC branch oil construction companies.

3) Pipelayer cabin can be provided with ROPS & FOPS certificates, for option.

4) Suhigo product has exported to Russia, Middle Asia, Middle East, Africa etc.

5) Suhigo factory covers 30,000m2 and has 100+ workers including office, workshop and field service personnel.
