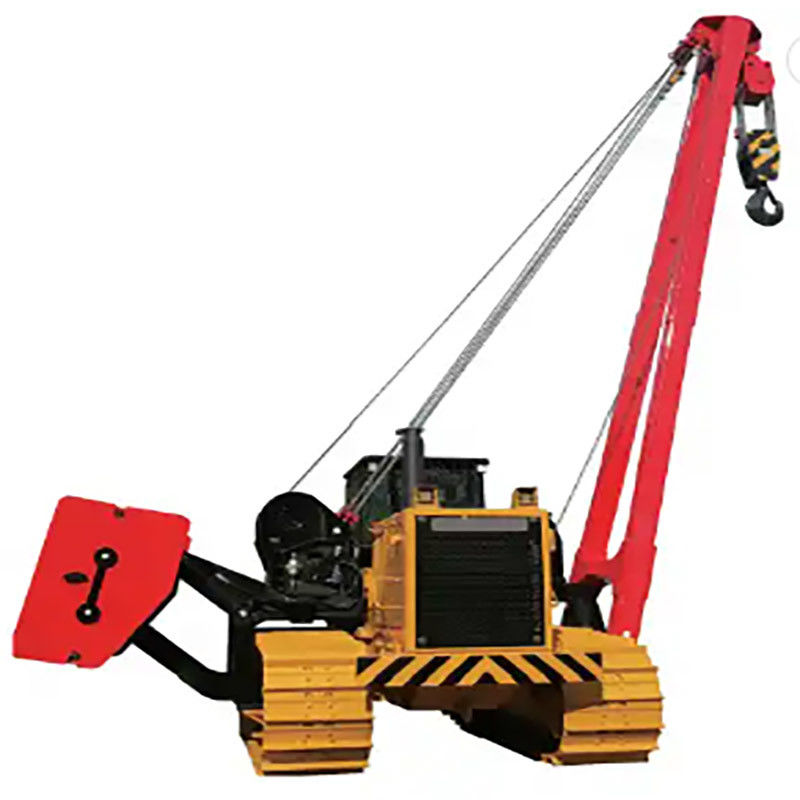

Hyd Underground Pipe Laying Machine OHSAS Pipeline Pairing Machine

Hyd Underground Pipe Laying Machine OHSAS Pipeline Pairing Machine

Hyd Underground Pipe Laying Machine

Pipeline Pairing Machine

OHSAS Underground Pipe Laying Machine

Place of Origin:

China

Brand Name:

Suhigo

Certification:

CE

Model Number:

HGY

Contact Us

Request A Quote
Product Details
Product Name:
Pipe Layer
Mobile Type:
Tracked Construction Machinery
Origin:
Langfang, Hebei
Size:
Standard
Transmission:
Planetary Gears, Forced Lubrication Power Shift
Applicable Temperature:
-45℃~+60℃
Certification:
ISO9001 OHSAS18001 CE
Applicable Industries:
Farms, Retail, Construction Works , Energy & Mining
Payment & Shipping Terms
Minimum Order Quantity
1 pcs
Price
Negotiable
Packaging Details
Seaworthy- Integral wax spraying anti-corrosion
Delivery Time
70days
Payment Terms
T/T, L/C
Product Description

Multiple Models Of HGY Series Pipe Layer, Used For Pipeline Laying And Pairing

Itroduction

  • The pipelayer is an important construction equipment in the construction of oil and natural gas pipelines. It is mainly used for the transportation of pipelines such as oil and gas, that is, pipeline transportation and piping operations, pipeline counterpart operations, and pipeline trenching operations. The pipelayer was developed and designed on the basis of the bulldozer in the 1930s. The vast majority of pipelayers produced in the world are based on bulldozer chassis.







Technical Features of Suhigo Pipelayer:



1) The high-strength pipelayer special chassis adopts large gauge design to improve the stability of the whole machine, making it more suitable for the side lifting condition

2) Complete safety devices to ensure lifting safety

3) Smooth transmission system

4) The hoisting system adopts full hydraulic transmission, with stable transmission and good fretting performance

5) Simple and convenient operation; Strong adaptability



Technical parameters

Model HGY25 HGY45
Moving system Operation Operating lever

Operating lever



speed Forward (2) 3.29/5.28 km/h 3.8/6.8 km/h
Reverse (2) 4.28/7.59 km/h 4.9/8.5 km/h
Track grounding length 2635mm 3050mm
Track width 560mm 660mm
Number of rollers 7×2 7×2
Lifting system Variable form Wire rope luffing Wire rope luffing
Operation method Hydraulic control handle Hydraulic control handle



Boom

Boom length 6000mm 7500/8500mm
Lifting height 4909mm 6400/7400mm
Boom angle 0~85° 0~86°
Hook speed (6-8 times rate) 0~12.0m/min 0~6.2 m/min
Amplitude time (4-5 times) 25s 20s



Hyd Underground Pipe Laying Machine OHSAS Pipeline Pairing Machine 0







About Suhigo

  1. As China Specialist in Pipeline Construction Equipment Manufacturing., Suhigo can offer premium pipelayers or sideboom to help achieve the target of lifting pipe, moving to position and placing pipe. Suhigo Pipelayer Family have full line lifting weight pipelayers equivalent to International Pipelayer brand, size ranging from 25tons to 90tons. With decades experience, all pipelayers are designed to full safety, reliable performance and easy operation, can work flexible with different size pipeline construction projects throughout the globle. Up to now, Suhigo have worked with Oil Construction companies of CNPC, Sinopec and CPP.
  2. Looking to acquire brand new pipelayers or sidebooms for your tender ? Check out the latest introduction of Pipelayers from Suhigo. Except for brand new pipelayers, we may have some used pipelayers in stock with good quality, welcome to contact us for more information.



Engine HGY25 HGY45 HGY70 HGY90
Model SDEC SC11CB Cummins NT855-C280 NT855-C360 Cummins NT855-C360
Rated Power 120kw / 160hp 169kw /225hp 257kw / 340hp 257kw / 340hp
Rated Speed 1850RPM 2000rpm 2000rpm 2000rpm



Lifting System HGY25 HGY45 HGY70 HGY90
Variable Mode Wire Rope Luffing Wire Rope Luffing Wire Rope Luffing Wire Rope Luffing
Operation Mode Hydraulic Control, Joystick Hydraulic Control, Joystick Hydraulic Control, Joystick Hydraulic Control, Joystick
Boom-Length 6000mm 7500 / 8500mm 7600 / 8600mm 8600 / 9600mm
Boom-Lifting Height 4909mm 6400 / 7400mm 6100 / 7050mm 7050 / 8110mm
Boom Angle 0~85° 0~86° 0~86° 0~86°
Hook Speed (6~8times rate) 0~12.0m/min 0~6.2m/min 0~7.0m/min 0~7.0m/min
Luffting Time (4~5times) 25S 20s 32s 40s



Hyd Underground Pipe Laying Machine OHSAS Pipeline Pairing Machine 1

Hyd Underground Pipe Laying Machine OHSAS Pipeline Pairing Machine 2





Why choose suhigo?

1) Suhigo is professional manufacturer, obtained ISO9001, ISO14001, GB/T28001 HSE Certificates, and CE certificate.

2) Suhigo has rich project experience with CPP, CNPC and SINOPEC branch oil construction companies.

3) Pipelayer cabin can be provided with ROPS & FOPS certificates, for option.

4) Suhigo product has exported to Russia, Middle Asia, Middle East, Africa etc.

5) Suhigo factory covers 30,000m2 and has 100+ workers including office, workshop and field service personnel.
