Hydraulic Pipe Layer Machine HGY Pipe Laying Equipment CE Approval

Hydraulic Pipe Layer Machine HGY Pipe Laying Equipment CE Approval

Hydraulic Pipe Layer Machine

HGY Pipe Laying Equipment

Hydraulic Pipe Laying Equipment

Place of Origin:

China

Brand Name:

Suhigo

Certification:

CE

Model Number:

HGY

Contact Us

Request A Quote
Product Details
Product Name:
Pipe Layer
Applicable Temperature:
-45℃~+60℃
Certification:
ISO9001 OHSAS18001 CE
Transmission:
Planetary Gears, Forced Lubrication Power Shift
Size:
Standard
Color:
Yellow And Red
Mobile Type:
Tracked Construction Machinery
Applicable Industries:
Farms, Retail, Construction Works , Energy & Mining
Payment & Shipping Terms
Minimum Order Quantity
1 pcs
Price
Negotiable
Packaging Details
Seaworthy- Integral wax spraying anti-corrosion
Delivery Time
70days
Payment Terms
T/T, L/C
Product Description

High Quality Hydraulic Pipe Layer Lifting Machine For Multi Specification Pipeline Construction


Itroduction

  • The hydraulic lifting and luffing hydraulic winch system selected by HGY hydraulic crawler pipelayer is mainly composed of hydraulic motor, hydraulic normally closed multi-plate brake, planetary gearbox, clutch, reel, support shaft, frame and so on. The hydraulic motor has high mechanical efficiency and large starting torque, and a balance valve is integrated on the distributor. Brakes, gearboxes, clutches, etc. are directly installed in the reel. The extremely high volumetric efficiency of the hydraulic motor and the high-quality balance valve solve the phenomenon of secondary sliding of the winch and vibration of the empty hook. The clutch attached to the hook winch realizes the free-falling hook function.

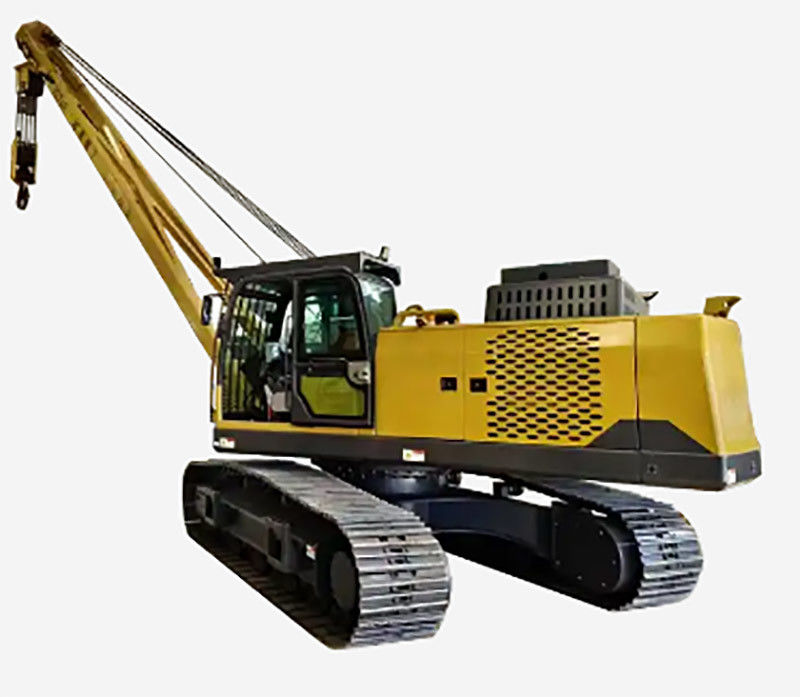

Hydraulic Pipe Layer Machine HGY Pipe Laying Equipment CE Approval 0



Technical Features of Suhigo Pipelayer:

  • The whole machine feature high strength, high stability, and beautiful appearance.
  • The hook rod winch and working hydraulic system adopt joint venture products or imported products.
  • The pilot control mode is adopted for the operations of hook rod winch and counterweight.
  • The four-link counterweight structure is adopted.
  • Optional air conditioned cab is available.
  • The corresponding measures are taken in consideration of diversified environment adaptabilities.
  • The working device and the counterweight feature good disassembling and assembling performance.



Technical parameters



Model HGY45 HGY70 HGY90
Moving system Operation

Operating lever



Operating lever



Operating lever
speed Forward (2) 3.6/6.6 km/h 3.6/6.6 km/h 3.6/6.6 km/h
Reverse (2) 4.3/7.7 km/h 4.4/7.8 km/h 4.4/7.8 km/h
Track grounding length 3050mm 3620mm 3620mm
Track width 660mm 760mm 760mm
Number of rollers 7×2 9×2 9×2
Lifting system Variable form Wire rope luffing Wire rope luffing Wire rope luffing
Operation method Hydraulic control handle Hydraulic control handle Hydraulic control handle



Boom

Boom length 7500/8500mm 7600/8600mm 8600/9600mm
Lifting height 6100/7050mm 6100/7050mm 7050/9600mm
Boom angle 0~86° 0~86° 0~86°
Hook speed (6-8 times rate) 0~6.2 m/min 0~7.0 m/min 0~7.0m/min
Amplitude time (4-5 times) 20s 32s 40s



Hydraulic Pipe Layer Machine HGY Pipe Laying Equipment CE Approval 1





About Suhigo

  1. As China Specialist in Pipeline Construction Equipment Manufacturing., Suhigo can offer premium pipelayers or sideboom to help achieve the target of lifting pipe, moving to position and placing pipe. Suhigo Pipelayer Family have full line lifting weight pipelayers equivalent to International Pipelayer brand, size ranging from 25tons to 90tons. With decades experience, all pipelayers are designed to full safety, reliable performance and easy operation, can work flexible with different size pipeline construction projects throughout the globle. Up to now, Suhigo have worked with Oil Construction companies of CNPC, Sinopec and CPP.
  2. Looking to acquire brand new pipelayers or sidebooms for your tender ? Check out the latest introduction of Pipelayers from Suhigo. Except for brand new pipelayers, we may have some used pipelayers in stock with good quality, welcome to contact us for more information.



Engine HGY25 HGY45 HGY70 HGY90
Model SDEC SC11CB Cummins NT855-C280 NT855-C360 Cummins NT855-C360
Rated Power 120kw / 160hp 169kw /225hp 257kw / 340hp 257kw / 340hp
Rated Speed 1850RPM 2000rpm 2000rpm 2000rpm



Lifting System HGY25 HGY45 HGY70 HGY90
Variable Mode Wire Rope Luffing Wire Rope Luffing Wire Rope Luffing Wire Rope Luffing
Operation Mode Hydraulic Control, Joystick Hydraulic Control, Joystick Hydraulic Control, Joystick Hydraulic Control, Joystick
Boom-Length 6000mm 7500 / 8500mm 7600 / 8600mm 8600 / 9600mm
Boom-Lifting Height 4909mm 6100 / 7050mm 7600 / 8600mm 7050 / 9600mm
Boom Angle 0~85° 0~86° 0~86° 0~86°
Hook Speed (6~8times rate) 0~12.0m/min 0~6.2m/min 0~7.0m/min 0~7.0m/min
Luffting Time (4~5times) 25S 20s 32s 40s



Hydraulic Pipe Layer Machine HGY Pipe Laying Equipment CE Approval 2

Hydraulic Pipe Layer Machine HGY Pipe Laying Equipment CE Approval 3





Why choose suhigo?

1) Suhigo is professional manufacturer, obtained ISO9001, ISO14001, GB/T28001 HSE Certificates, and CE certificate.

2) Suhigo has rich project experience with CPP, CNPC and SINOPEC branch oil construction companies.

3) Pipelayer cabin can be provided with ROPS & FOPS certificates, for option.

4) Suhigo product has exported to Russia, Middle Asia, Middle East, Africa etc.

5) Suhigo factory covers 30,000m2 and has 100+ workers including office, workshop and field service personnel.
