Heavy 70T Pipeline Layer HGY Pipeline Bulldozer Hydraulic Control

Heavy 70T Pipeline Layer HGY Pipeline Bulldozer Hydraulic Control

Heavy 70T Pipeline Layer

HGY Pipeline Bulldozer

70T Pipeline Bulldozer

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Product Name:
HGY Pipe Layer
ISO9001 OHSAS18001 CE
Core Components:
Pressure Vessel, Gear, Pump
Mobile Type:
Tracked Construction Machinery
Operation Mode:
Hydraulic Control
Selling Point:
High Operational Efficiency
Yellow And Red
Planetary Gears, Forced Lubrication Power Shift
Payment & Shipping Terms
Minimum Order Quantity
1 pcs
Packaging Details
Seaworthy- Integral wax spraying anti-corrosion
Delivery Time
Payment Terms
T/T, L/C
Product Description

Heavy Pipeline Layer Bulldozer HGY Series Pipeline Construction Equipment



The counterweight mechanism is composed of a counterweight frame, a counterweight block, and a driving cylinder. The counterweight frame is a swing-out four-bar linkage mechanism. When the pipelayer is working, the number of counterweight blocks can be adjusted according to the lifting capacity. The expansion and contraction of the counterweight mechanism is driven by a hydraulic cylinder. The entire counterweight mechanism has a mature structure and is reliable in use.



project name main parameters
Device model HGY70
Maximum lifting capacity t 70
Rated lifting capacity t 59
Machine mass t 49
Host transportation dimensions (length × width × height) mm 5630×3400×3540(mm)
Host transport mass t 37.5
Average ground specific pressure kPa 87.3
Minimum ground clearance mm 550
Maximum gradeability ° 25
Applicable environment Meet the ambient temperature of -45℃~+70℃ and the environment below 3600m above sea level
Engine model

Cuminns NTA855-C360

Cummins QSNT-C345

Rated power kW 257
Rated speed rpm 2000
Walk System chassis Chassis for pipelayers
Operation method joystick
Speed Forward km/h 3.6/6.6/11.5
Backward km/h 4.4/7.8/13.5
Track ground length mm 3620
Track center distance mm 2380
Track shoe width mm 760
Number of rollers 9×2



luffing form Wire Rope Luffing
Operation method Hydraulic control handle
Boom Arm length mm 7600/8600(optional)
Maximum Lifting Height mm 6100/7050
Boom Luffing Angle ° 0~86
Hook speed (8 times) m/min 0~7.0
Amplitude change time (5 times) s 32
Executive standard ISO8813





The lifting system adopts open hydraulic transmission with gear pump oil supply with strong anti pollution ability and self-priming ability, with stable transmission, stepless speed change, good micro motion performance and strong adaptability.
The lifting hook and boom luffing are controlled by hydraulic winch, and the counterweight retraction and release are controlled by hydraulic oil cylinder, which meets the requirements for efficiency and accuracy during pipe crane operation.
The boom is welded with HG60 high-strength steel, with light weight and high strength.

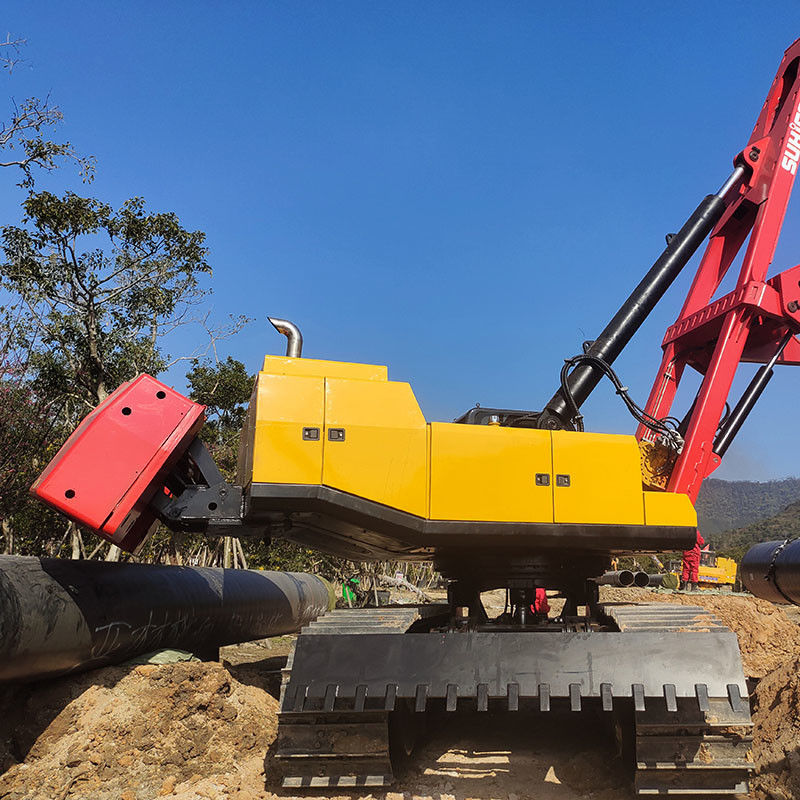

Heavy 70T Pipeline Layer HGY Pipeline Bulldozer Hydraulic Control 0




About Suhigo

  1. As China Specialist in Pipeline Construction Equipment Manufacturing., Suhigo can offer premium pipelayers or sideboom to help achieve the target of lifting pipe, moving to position and placing pipe. Suhigo Pipelayer Family have full line lifting weight pipelayers equivalent to International Pipelayer brand, size ranging from 25tons to 90tons. With decades experience, all pipelayers are designed to full safety, reliable performance and easy operation, can work flexible with different size pipeline construction projects throughout the globle. Up to now, Suhigo have worked with Oil Construction companies of CNPC, Sinopec and CPP.
  2. Looking to acquire brand new pipelayers or sidebooms for your tender ? Check out the latest introduction of Pipelayers from Suhigo. Except for brand new pipelayers, we may have some used pipelayers in stock with good quality, welcome to contact us for more information.

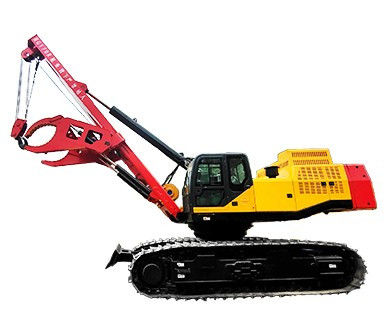

Heavy 70T Pipeline Layer HGY Pipeline Bulldozer Hydraulic Control 1

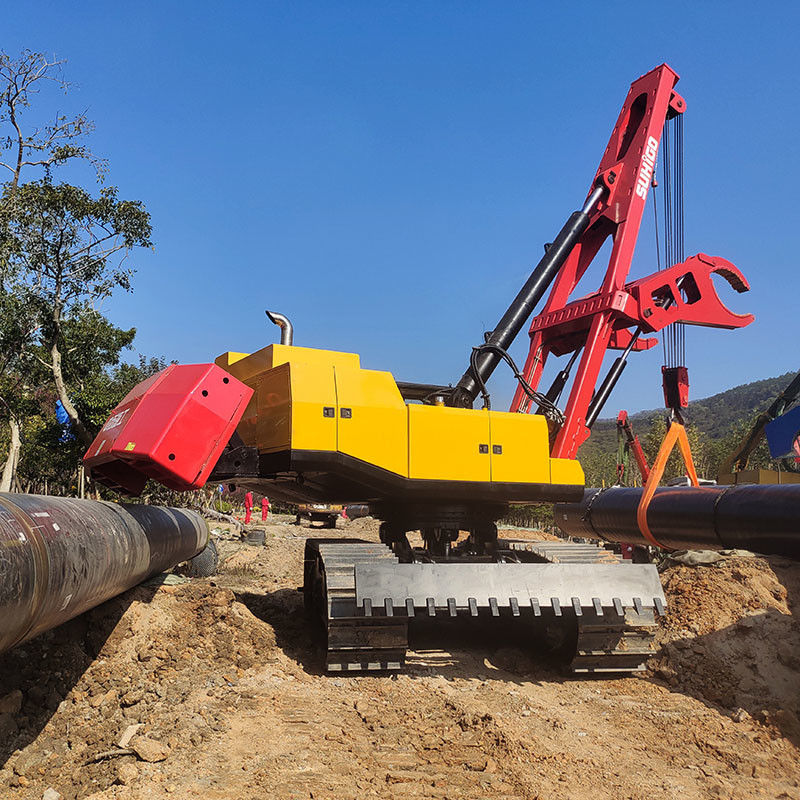

Heavy 70T Pipeline Layer HGY Pipeline Bulldozer Hydraulic Control 2

Heavy 70T Pipeline Layer HGY Pipeline Bulldozer Hydraulic Control 3



Why choose suhigo?

1) Suhigo is professional manufacturer, obtained ISO9001, ISO14001, GB/T28001 HSE Certificates, and CE certificate.

2) Suhigo has rich project experience with CPP, CNPC and SINOPEC branch oil construction companies.

3) Pipelayer cabin can be provided with ROPS & FOPS certificates, for option.

4) Suhigo product has exported to Russia, Middle Asia, Middle East, Africa etc.

5) Suhigo factory covers 30,000m2 and has 100+ workers including office, workshop and field service personnel.
