Side Arm Crawler Pipelayer Pipeline Machines High Strength Yellow

Side Arm Crawler Pipelayer Pipeline Machines High Strength Yellow

Crawler Pipelayer Pipeline Machine

Side Arm Crawler Pipelayer

High Strength Crawler Pipelayer

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Product Name:
HGY Pipe Layer
Selling Point::
High Operational Efficiency
Langfang, Hebei
Mobile Type:
Tracked Construction Machinery
Applicable Temperature:
Yellow And Red
Planetary Gears, Forced Lubrication Power Shift
Payment & Shipping Terms
Minimum Order Quantity
1 pcs
Packaging Details
Seaworthy- Integral wax spraying anti-corrosion
Delivery Time
Payment Terms
T/T, L/C
Product Description

HGY Series High-Strength Side Arm Crawler Pipe Oil Equipment Sold For Pipeline Construction


The hydraulic lifting and luffing hydraulic winch system selected by HGY70 hydraulic crawler pipelayer is mainly composed of hydraulic motor, hydraulic normally closed multi-plate brake, planetary gearbox, clutch, reel, support shaft, frame and so on. The hydraulic motor has high mechanical efficiency and large starting torque, and a balance valve is integrated on the distributor.



Model HGY25 HGY45
Moving system Operation Operating lever

Operating lever


speed Forward (2) 3.29/5.28 km/h 3.8/6.8 km/h
Reverse (2) 4.28/7.59 km/h 4.9/8.5 km/h
Track grounding length 2635mm 3050mm
Track width 560mm 660mm
Number of rollers 7×2 7×2
Lifting system Variable form Wire rope luffing Wire rope luffing
Operation method Hydraulic control handle Hydraulic control handle



Boom length 6000mm 7500/8500mm
Lifting height 4909mm 6400/7400mm
Boom angle 0~85° 0~86°
Hook speed (6-8 times rate) 0~12.0m/min 0~6.2 m/min
Amplitude time (4-5 times) 25s 20s





The lifting system adopts open hydraulic transmission with gear pump oil supply with strong anti pollution ability and self-priming ability, with stable transmission, stepless speed change, good micro motion performance and strong adaptability.
The lifting hook and boom luffing are controlled by hydraulic winch, and the counterweight retraction and release are controlled by hydraulic oil cylinder, which meets the requirements for efficiency and accuracy during pipe crane operation.
The boom is welded with HG60 high-strength steel, with light weight and high strength.

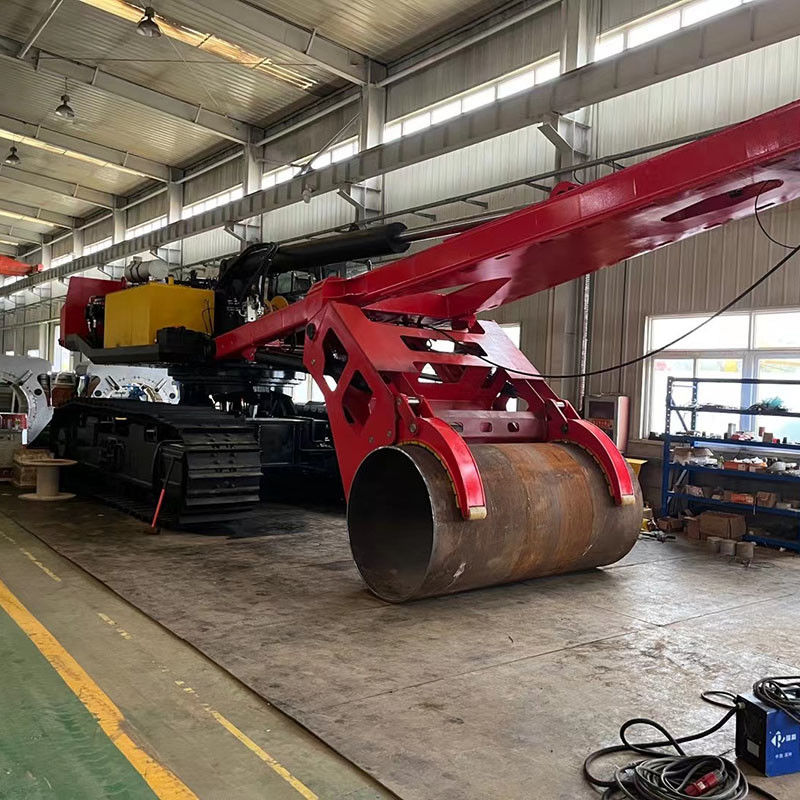

Side Arm Crawler Pipelayer Pipeline Machines High Strength Yellow 0

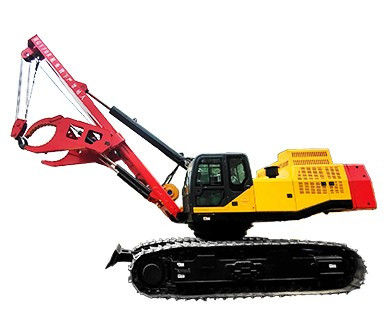

Side Arm Crawler Pipelayer Pipeline Machines High Strength Yellow 1




About Suhigo

  1. As China Specialist in Pipeline Construction Equipment Manufacturing., Suhigo can offer premium pipelayers or sideboom to help achieve the target of lifting pipe, moving to position and placing pipe. Suhigo Pipelayer Family have full line lifting weight pipelayers equivalent to International Pipelayer brand, size ranging from 25tons to 90tons. With decades experience, all pipelayers are designed to full safety, reliable performance and easy operation, can work flexible with different size pipeline construction projects throughout the globle. Up to now, Suhigo have worked with Oil Construction companies of CNPC, Sinopec and CPP.
  2. Looking to acquire brand new pipelayers or sidebooms for your tender ? Check out the latest introduction of Pipelayers from Suhigo. Except for brand new pipelayers, we may have some used pipelayers in stock with good quality, welcome to contact us for more information.

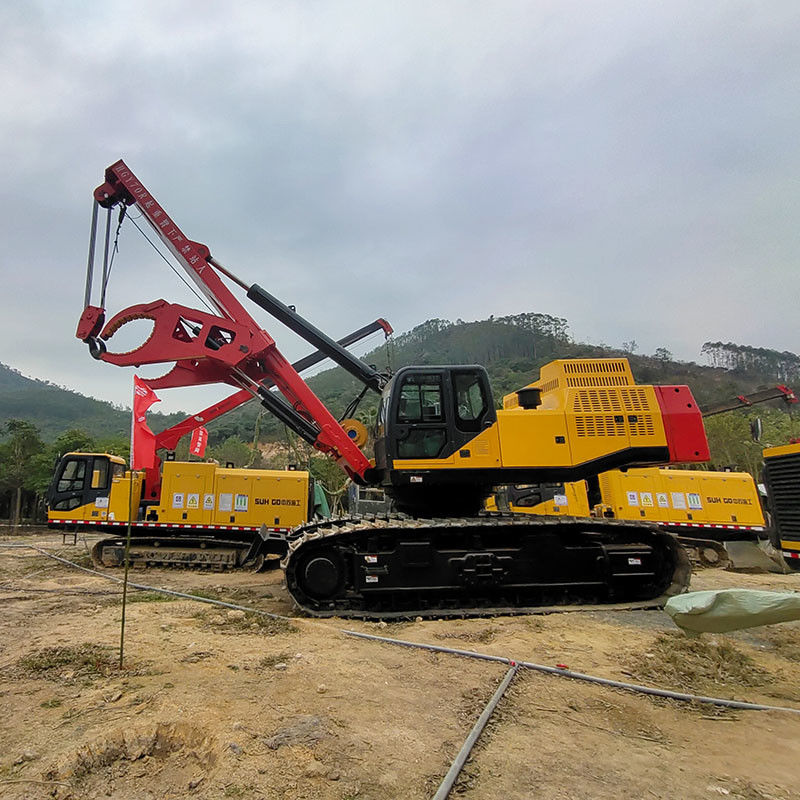

Side Arm Crawler Pipelayer Pipeline Machines High Strength Yellow 2
