70T Side Arm Pipelayer Crane Pipeline Machines For Construction Industry

70T Side Arm Pipelayer Crane Pipeline Machines For Construction Industry

70T Side Arm Pipelayer Crane

70T Crane Pipeline Machines

Pipelayer Crane Pipeline Machines

Place of Origin:

China

Brand Name:

Suhigo

Certification:

CE

Model Number:

HGY

Contact Us

Request A Quote
Product Details
Product Name:
HGY Pipe Layer
Certification:
ISO9001 OHSAS18001 CE
Applicable Temperature:
-45℃~+60℃
Mobile Type:
Tracked Construction Machinery
Color:
Yellow And Red
Size:
Standard
Transmission:
Planetary Gears, Forced Lubrication Power Shift
Applicable Industries:
Farms, Retail, Construction Works , Energy & Mining
Payment & Shipping Terms
Minimum Order Quantity
1 pcs
Price
Negotiable
Packaging Details
Seaworthy- Integral wax spraying anti-corrosion
Delivery Time
70days
Payment Terms
T/T, L/C
Product Description

HGY Series High-Strength Side Arm Crawler Pipe Oil Equipment Sold For Pipeline Construction

Shantui 70 Ton Pipe Crane Side Arm Pipeline Construction Industry



INTRODUCTION

The are directly installed in the reel. The extremely high volumetric efficiency of the hydraulic motor and the high-quality balance valve solve the phenomenon of secondary sliding of the winch and vibration of the empty hook. The clutch attached to the hook winch realizes the free-falling hook function.



Model HGY25 HGY45 HGY70
Moving system Operation Operating lever

Operating lever



Operating lever



speed Forward (2) 3.29/5.28 km/h 3.8/6.8 km/h 3.6/6.6 km/h
Reverse (2) 4.28/7.59 km/h 4.9/8.5 km/h 4.4/7.8 km/h
Track grounding length 2635mm 3050mm 3620mm
Track width 560mm 660mm 760mm
Number of rollers 7×2 7×2 9×2
Lifting system Variable form Wire rope luffing Wire rope luffing Wire rope luffing
Operation method Hydraulic control handle Hydraulic control handle Hydraulic control handle
Boom angle 0~85° 0~86° 0~86°
Hook speed (6-8 times rate) 0~12.0m/min 0~6.2 m/min 0~7.0 m/min
Amplitude time (4-5 times) 25s 20s 32s







Feature

The lifting system adopts open hydraulic transmission with gear pump oil supply with strong anti pollution ability and self-priming ability, with stable transmission, stepless speed change, good micro motion performance and strong adaptability.
The lifting hook and boom luffing are controlled by hydraulic winch, and the counterweight retraction and release are controlled by hydraulic oil cylinder, which meets the requirements for efficiency and accuracy during pipe crane operation.
The boom is welded with HG60 high-strength steel, with light weight and high strength.

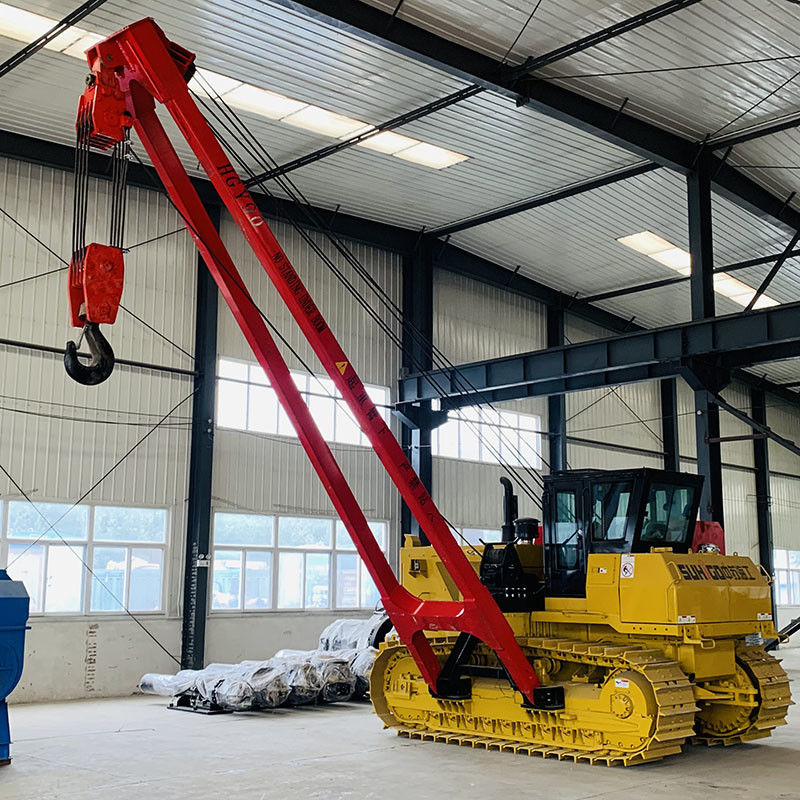

70T Side Arm Pipelayer Crane Pipeline Machines For Construction Industry 0









About Suhigo

  1. As China Specialist in Pipeline Construction Equipment Manufacturing., Suhigo can offer premium pipelayers or sideboom to help achieve the target of lifting pipe, moving to position and placing pipe. Suhigo Pipelayer Family have full line lifting weight pipelayers equivalent to International Pipelayer brand, size ranging from 25tons to 90tons. With decades experience, all pipelayers are designed to full safety, reliable performance and easy operation, can work flexible with different size pipeline construction projects throughout the globle. Up to now, Suhigo have worked with Oil Construction companies of CNPC, Sinopec and CPP.
  2. Looking to acquire brand new pipelayers or sidebooms for your tender ? Check out the latest introduction of Pipelayers from Suhigo. Except for brand new pipelayers, we may have some used pipelayers in stock with good quality, welcome to contact us for more information.

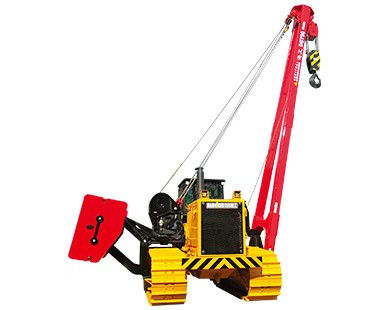

70T Side Arm Pipelayer Crane Pipeline Machines For Construction Industry 1

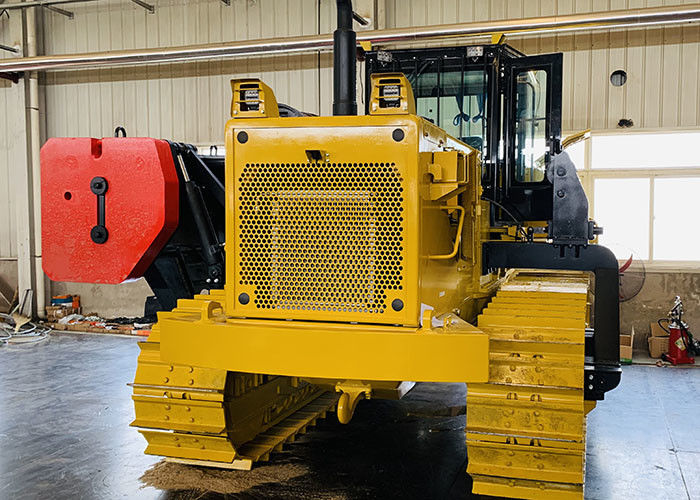

70T Side Arm Pipelayer Crane Pipeline Machines For Construction Industry 2

70T Side Arm Pipelayer Crane Pipeline Machines For Construction Industry 3





Why choose suhigo?

1) Suhigo is professional manufacturer, obtained ISO9001, ISO14001, GB/T28001 HSE Certificates, and CE certificate.

2) Suhigo has rich project experience with CPP, CNPC and SINOPEC branch oil construction companies.

3) Pipelayer cabin can be provided with ROPS & FOPS certificates, for option.

4) Suhigo product has exported to Russia, Middle Asia, Middle East, Africa etc.

5) Suhigo factory covers 30,000m2 and has 100+ workers including office, workshop and field service personnel.
