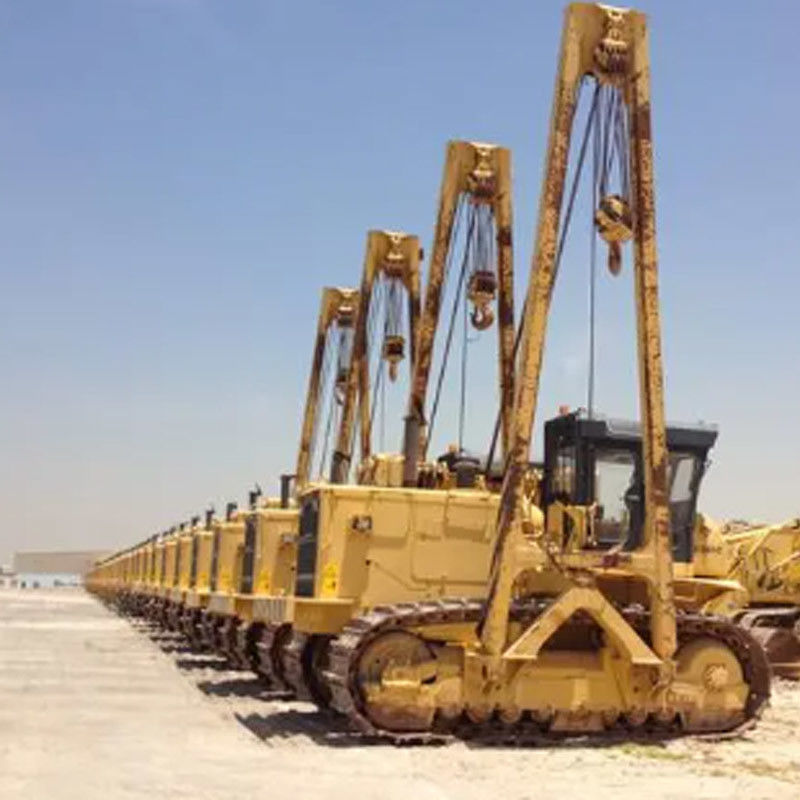

45T 70T Excavator Pipe Layer Construction With Hydraulic System

45T 70T Excavator Pipe Layer Construction With Hydraulic System

70T Excavator Pipe Layer

45T Excavator Pipe Layer

Hydraulic Pipe Layer Construction

Place of Origin:

China

Brand Name:

Suhigo

Certification:

CE

Model Number:

HGY

Contact Us

Request A Quote
Product Details
Product Name:
Pipeline Machines
Operation Mode:
Hydraulic Control
Applicable Industries:
Building Material Stores
Certification:
ISO9001 OHSAS18001 CE
Mobile Type:
Tracked Construction Machinery
Color:
Yellow And Red
Size:
Standard
Transmission:
Planetary Gears, Forced Lubrication Power Shift
Payment & Shipping Terms
Minimum Order Quantity
1 pcs
Price
Negotiable
Packaging Details
Seaworthy- Integral wax spraying anti-corrosion
Delivery Time
70days
Payment Terms
T/T, L/C
Product Description

Large Mechanical Equipment For Pipeline Laying System, High-Strength Pipe Layer Machinery






INTRODUCTION

1. Proportional control: The hydraulic system is stable and accurate, and the oil cylinder and motor can be controlled by stepless speed regulation. The control speed is only determined by the displacement of the spool, and does not depend on the change of the load.

2. Multi-element combination action: satisfy multiple actuators to work at the same time. When two or more actuators need to work at the same time, combined actions can also be realized under the conditions of different loads, pressures and flow rates.

3. Increased hydraulic system efficiency reduces median overflow losses.



Model HGY20 HGY45 HGY70
Moving system Operation Operating lever

Operating lever



Operating lever



speed Forward (2) 3.29/5.28 km/h 3.6/6.6 km/h 3.6/6.6 km/h
Reverse (2) 4.28/7.59 km/h 4.3/7.7 km/h 4.4/7.8 km/h
Track grounding length 2635mm 3050mm 3620mm
Track width 560mm 660mm 760mm
Number of rollers 7×2 7×2 9×2
Lifting system Variable form Wire rope luffing Wire rope luffing Wire rope luffing
Operation method Hydraulic control handle Hydraulic control handle Hydraulic control handle



Boom

Boom length 6000mm 7500/8500mm 7600/8600mm
Lifting height 4909mm 6100/7050mm 6100/7050mm
Boom angle 0~85° 0~86° 0~86°
Hook speed (6-8 times rate) 0~12.0m/min 0~6.2 m/min 0~7.0 m/min
Amplitude time (4-5 times) 25s 20s 32s







Feature

The lifting system adopts open hydraulic transmission with gear pump oil supply with strong anti pollution ability and self-priming ability, with stable transmission, stepless speed change, good micro motion performance and strong adaptability.
The lifting hook and boom luffing are controlled by hydraulic winch, and the counterweight retraction and release are controlled by hydraulic oil cylinder, which meets the requirements for efficiency and accuracy during pipe crane operation.
The boom is welded with HG60 high-strength steel, with light weight and high strength.











About Suhigo

  1. As China Specialist in Pipeline Construction Equipment Manufacturing., Suhigo can offer premium pipelayers or sideboom to help achieve the target of lifting pipe, moving to position and placing pipe. Suhigo Pipelayer Family have full line lifting weight pipelayers equivalent to International Pipelayer brand, size ranging from 25tons to 90tons. With decades experience, all pipelayers are designed to full safety, reliable performance and easy operation, can work flexible with different size pipeline construction projects throughout the globle. Up to now, Suhigo have worked with Oil Construction companies of CNPC, Sinopec and CPP.
  2. Looking to acquire brand new pipelayers or sidebooms for your tender ? Check out the latest introduction of Pipelayers from Suhigo. Except for brand new pipelayers, we may have some used pipelayers in stock with good quality, welcome to contact us for more information.



45T 70T Excavator Pipe Layer Construction With Hydraulic System 0

45T 70T Excavator Pipe Layer Construction With Hydraulic System 1

45T 70T Excavator Pipe Layer Construction With Hydraulic System 2





Why choose suhigo?

1) Suhigo is professional manufacturer, obtained ISO9001, ISO14001, GB/T28001 HSE Certificates, and CE certificate.

2) Suhigo has rich project experience with CPP, CNPC and SINOPEC branch oil construction companies.

3) Pipelayer cabin can be provided with ROPS & FOPS certificates, for option.

4) Suhigo product has exported to Russia, Middle Asia, Middle East, Africa etc.

5) Suhigo factory covers 30,000m2 and has 100+ workers including office, workshop and field service personnel.
