Construction 70T Pipeline Machines Side Arm Pipelayer Crane Yellow

Construction 70T Pipeline Machines Side Arm Pipelayer Crane Yellow

Construction 70T Pipeline Machines

Side Arm Pipelayer Crane

70T Side Arm Pipelayer Crane

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Product Name:
HGY Pipe Layer
Applicable Industries:
Building Material Stores, Mechanical Maintenance Stores
Applicable Temperature:
Core Components:
PLC, Engine, Bearings, Gearbox, Motor
Hydraulic Drive
Yellow And Red
Planetary Gears, Forced Lubrication Power Shift
Payment & Shipping Terms
Minimum Order Quantity
1 pcs
Packaging Details
Seaworthy- Integral wax spraying anti-corrosion
Delivery Time
Payment Terms
T/T, L/C
Product Description

Pipeline Construction Industry Machinery - Shantui Pipe Crane Side Arm


The pin-type sensor is a shear load, and the supporting force acting on the middle of the sensor and the left and right parts of the sensor causes the sensor to change slightly, and the micro-deformation caused by the shear stress is converted into an electrical signal proportional to the load. After being transmitted by the cable to the host computer, it is calculated and displayed on the current actual weight;


Model HGY25 HGY45 HGY70
Moving system Operation Operating lever

Operating lever


Operating lever


speed Forward (2) 3.29/5.28 km/h 3.8/6.8 km/h 3.6/6.6 km/h
Reverse (2) 4.28/7.59 km/h 4.9/8.5 km/h 4.4/7.8 km/h
Track grounding length 2635mm 3050mm 3620mm
Track width 560mm 660mm 760mm
Number of rollers 7×2 7×2 9×2
Lifting system Variable form Wire rope luffing Wire rope luffing Wire rope luffing
Operation method Hydraulic control handle Hydraulic control handle Hydraulic control handle



Boom length 6000mm 7500/8500mm 7600/8600mm
Lifting height 4909mm 6400/7400mm 6100/7050mm
Boom angle 0~85° 0~86° 0~86°
Hook speed (6-8 times rate) 0~12.0m/min 0~6.2 m/min 0~7.0 m/min
Amplitude time (4-5 times) 25s 20s 32s





The lifting system adopts open hydraulic transmission with gear pump oil supply with strong anti pollution ability and self-priming ability, with stable transmission, stepless speed change, good micro motion performance and strong adaptability.
The lifting hook and boom luffing are controlled by hydraulic winch, and the counterweight retraction and release are controlled by hydraulic oil cylinder, which meets the requirements for efficiency and accuracy during pipe crane operation.
The boom is welded with HG60 high-strength steel, with light weight and high strength.

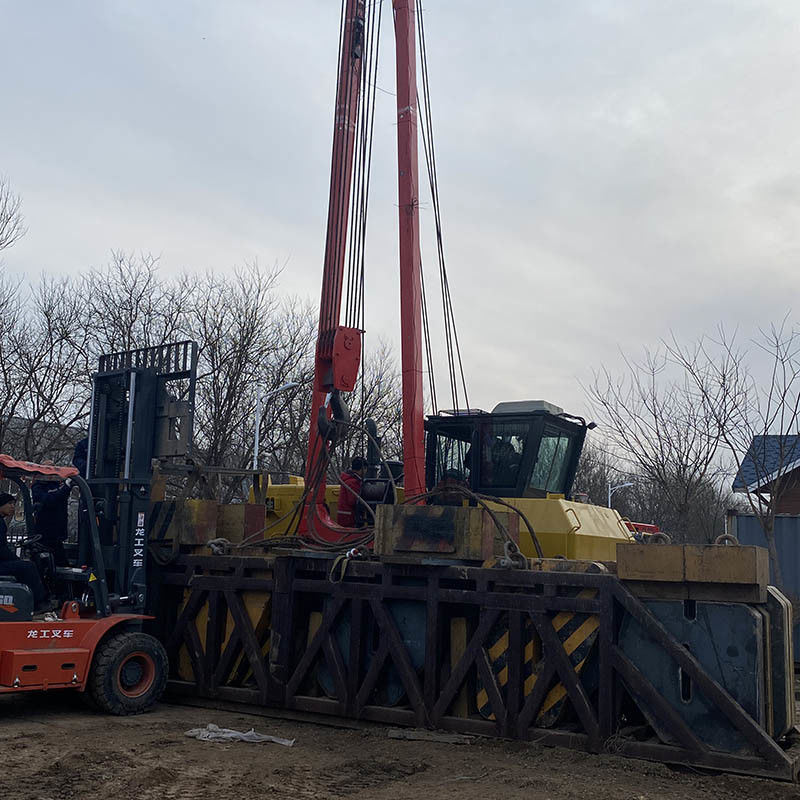

Construction 70T Pipeline Machines Side Arm Pipelayer Crane Yellow 0





About Suhigo

  1. As China Specialist in Pipeline Construction Equipment Manufacturing., Suhigo can offer premium pipelayers or sideboom to help achieve the target of lifting pipe, moving to position and placing pipe. Suhigo Pipelayer Family have full line lifting weight pipelayers equivalent to International Pipelayer brand, size ranging from 25tons to 90tons. With decades experience, all pipelayers are designed to full safety, reliable performance and easy operation, can work flexible with different size pipeline construction projects throughout the globle. Up to now, Suhigo have worked with Oil Construction companies of CNPC, Sinopec and CPP.
  2. Looking to acquire brand new pipelayers or sidebooms for your tender ? Check out the latest introduction of Pipelayers from Suhigo. Except for brand new pipelayers, we may have some used pipelayers in stock with good quality, welcome to contact us for more information.

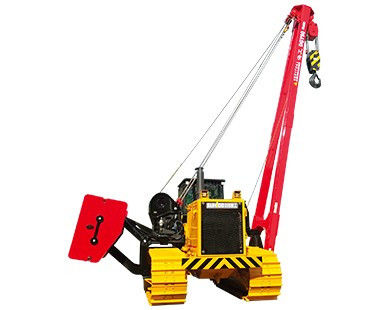

Construction 70T Pipeline Machines Side Arm Pipelayer Crane Yellow 1

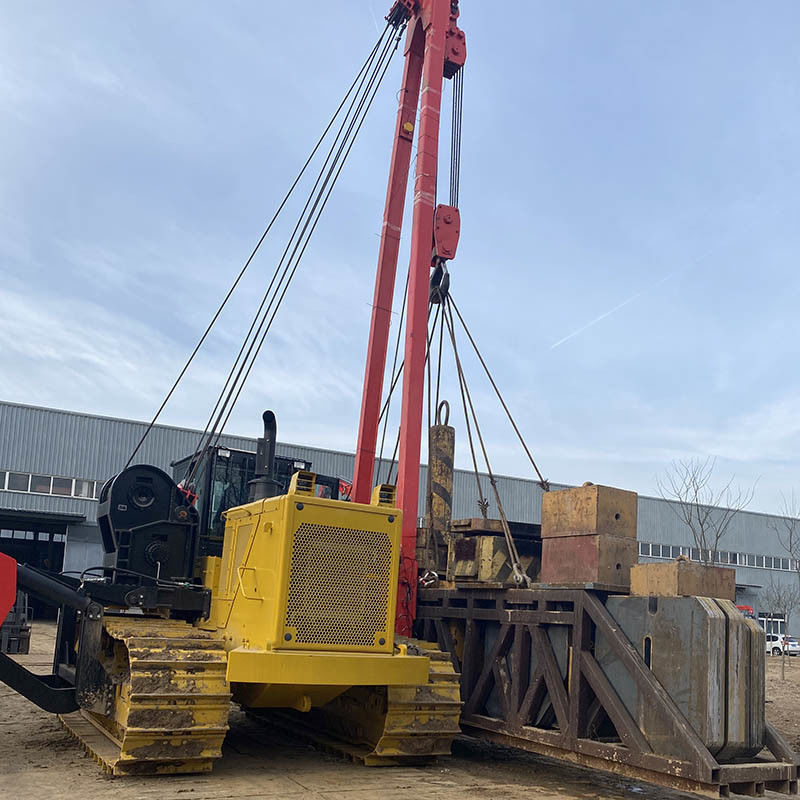

Construction 70T Pipeline Machines Side Arm Pipelayer Crane Yellow 2

Construction 70T Pipeline Machines Side Arm Pipelayer Crane Yellow 3



Why choose suhigo?

1) Suhigo is professional manufacturer, obtained ISO9001, ISO14001, GB/T28001 HSE Certificates, and CE certificate.

2) Suhigo has rich project experience with CPP, CNPC and SINOPEC branch oil construction companies.

3) Pipelayer cabin can be provided with ROPS & FOPS certificates, for option.

4) Suhigo product has exported to Russia, Middle Asia, Middle East, Africa etc.

5) Suhigo factory covers 30,000m2 and has 100+ workers including office, workshop and field service personnel.
