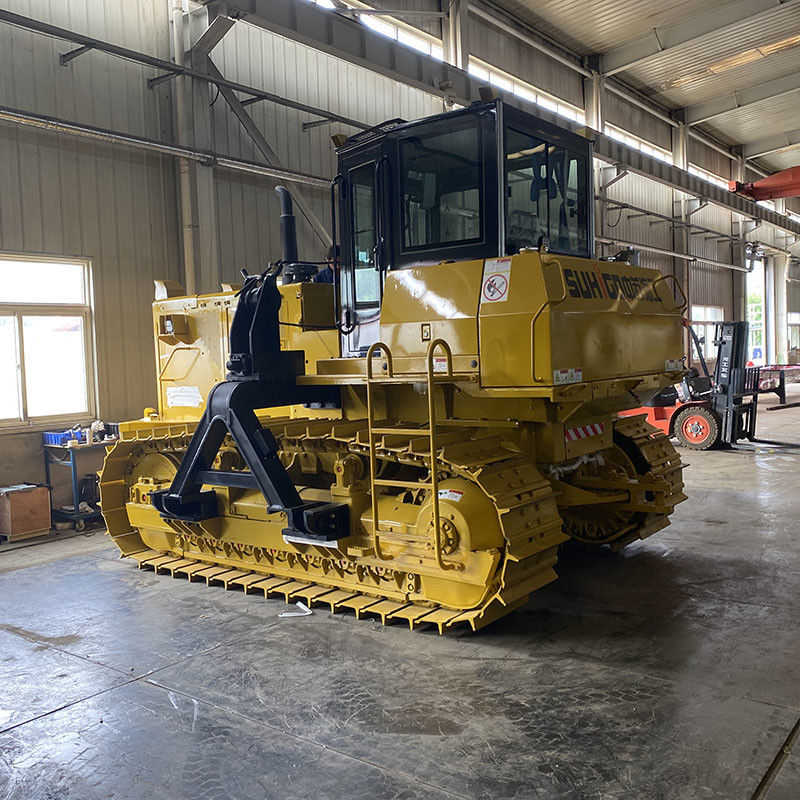

Professional Design Of Mountain Forearm Tracked Pipeline Layer

INTRODUCTION

★ Boom luffing by oil cylinder; jib luffing and clamp operation by oil cylinder
★ The jib arm with a certain degree of freedom, clamp can fix the pipeline
conveniently and safely
★ The polyurethane pad of clamp shall be arranged according to the size of
the pipeline to prevent damage to the anti-corrosion coating of the pipeline
★ The reinforced structure is adopted at the bottom of the jib, which can
realize the self-rescue function of the whole vehicle

Feature

1. Work platform 360° full rotation, can work flexible in narrow work conditions
2. Platform Maximum adjustment angle: bidirectional 18 ° , reducing the absolute
angle of the platform
3. Oil Cylinder Luffing design with better boom rigidity, and it is not easy to
produce large shaking under bumpy working conditions
4. Normally closed brake pressed by spring ensures reliable braking on the ramp
5. Four connecting-rod counterweight system to adjust the center of gravity of the
whole vehicle at any time

About Suhigo

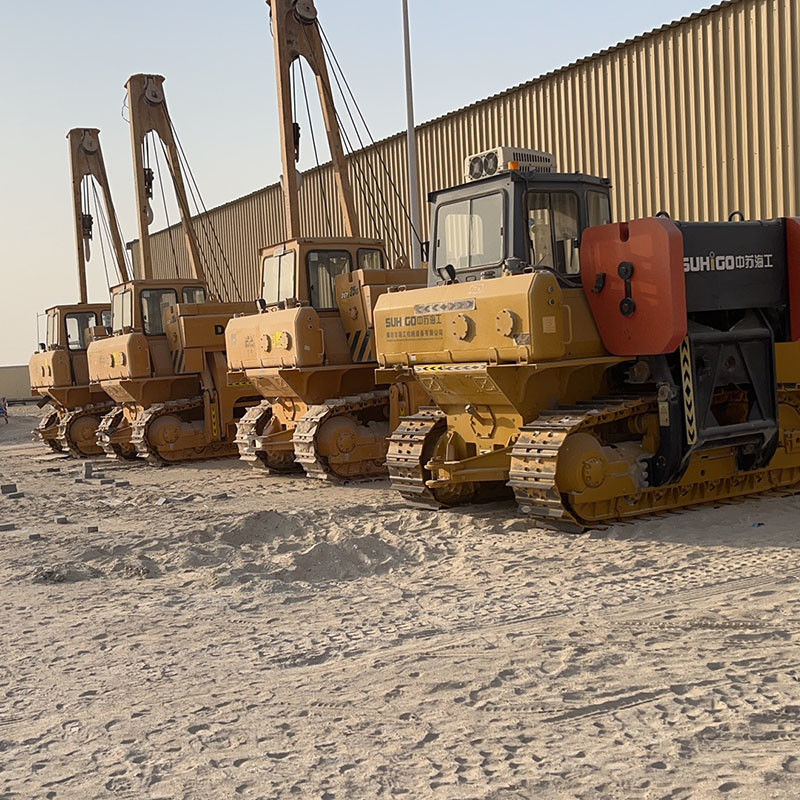

1. As China Specialist in Pipeline Construction Equipment Manufacturing., Suhigo can offer premium pipelayers or sideboom to help achieve the target of lifting pipe, moving to position and placing pipe. Suhigo Pipelayer Family have full line lifting weight pipelayers equivalent to International Pipelayer brand, size ranging from 25tons to 90tons. With decades experience, all pipelayers are designed to full safety, reliable performance and easy operation, can work flexible with different size pipeline construction projects throughout the globle. Up to now, Suhigo have worked with Oil Construction companies of CNPC, Sinopec and CPP.
2. Looking to acquire brand new pipelayers or sidebooms for your tender ? Check out the latest introduction of Pipelayers from Suhigo. Except for brand new pipelayers, we may have some used pipelayers in stock with good quality, welcome to contact us for more information.

Why choose suhigo?

1) Suhigo is professional manufacturer, obtained ISO9001, ISO14001, GB/T28001 HSE Certificates, and CE certificate.

2) Suhigo has rich project experience with CPP, CNPC and SINOPEC branch oil construction companies.

3) Pipelayer cabin can be provided with ROPS & FOPS certificates, for option.

4) Suhigo product has exported to Russia, Middle Asia, Middle East, Africa etc.

5) Suhigo factory covers 30,000m2 and has 100+ workers including office, workshop and field service personnel.
