Pipeline Machine Crawler Conveyor Horizontal Moving Equipment

Pipeline Machine Crawler Conveyor Horizontal Moving Equipment

Crawler Conveyor Horizontal Moving Equipment

Pipeline Machine Crawler Conveyor

Pipelines Crawler Conveyor

Place of Origin:

Hebei,China

Brand Name:

Suhigo

Certification:

ISO-9001

Contact Us

Request A Quote
Product Details
Movement Direction:
Left, Right, Forward, Backward
Country Of Origin:
Hebei, China
Applicable Industries:
Manufacturing Plant, Loading Equipment,
Core Components:
PLC, Engine, Motor
Name:
Pipe Handling Equipment
Material Science:
High Strength Manganese Steel
Power Supply:
AC+DC
Advantages:
Save Manpower, Time, And Costs
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Interview
Packaging Details
Customized
Delivery Time
7-15 work days
Payment Terms
T/T
Product Description

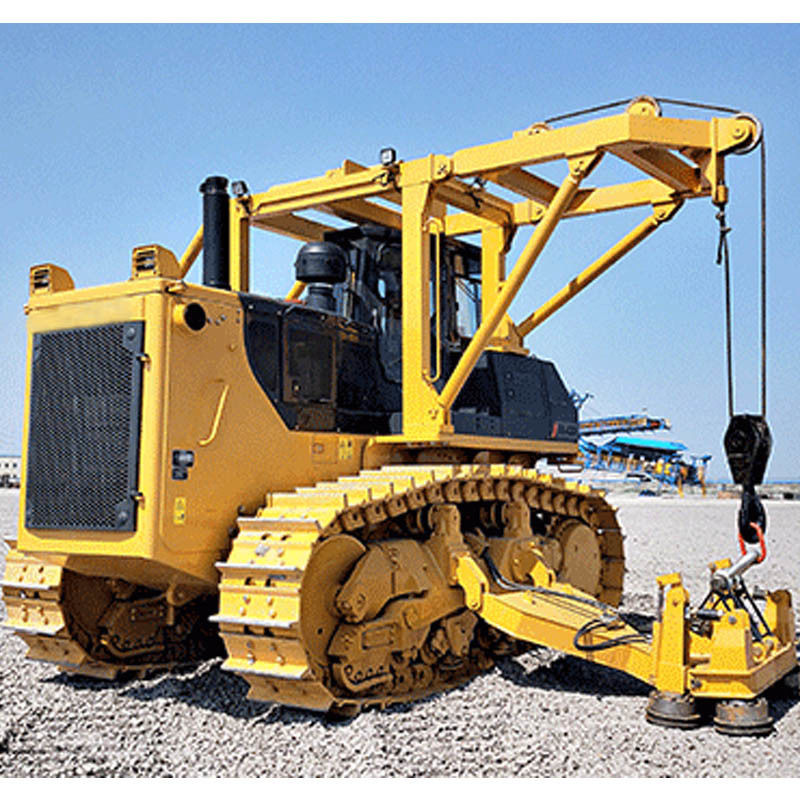

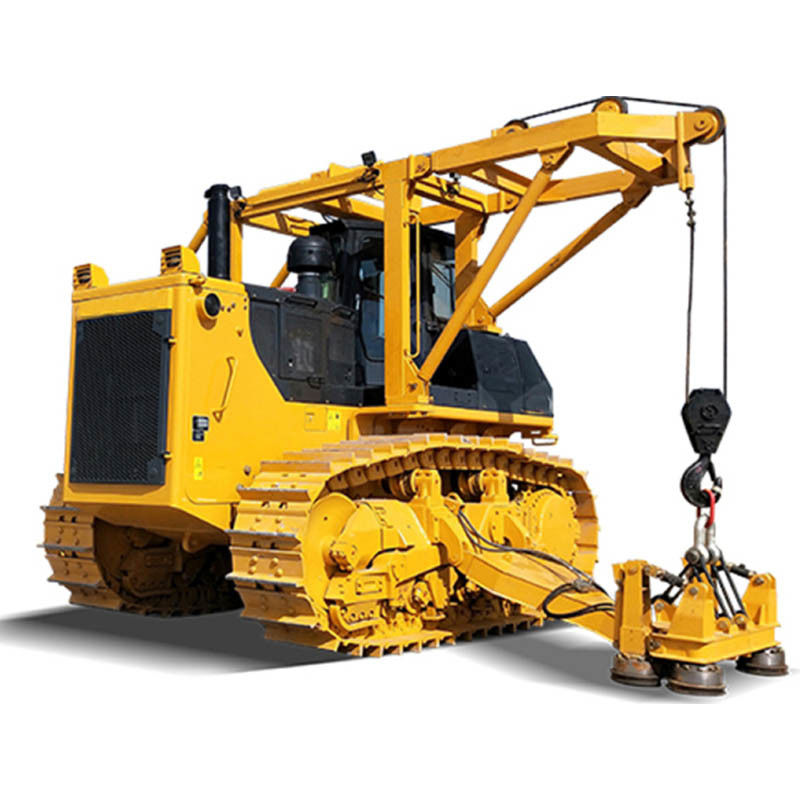

Horizontal Moving Equipment For Crawler Conveyors Used In Open-Pit Mining Construction




Introduction

Specially designed for moving conveyor belts in open-pit mines, it can move conveyor belts with a maximum width of 2500mm (movable). The hydraulic conveyor head does not require manual intervention and can be operated directly from the driver's cab. The equipment mainly consists of an engine, transfer case, hydraulic torque converter, planetary power shift gearbox, final drive, and track walking device.





Equipment model PYS70-2
Engine model Cummins NTA855-C360
Engine rated power/speed  235/2000 kW/rpm
Operating weight  41000 kg
Overall dimensions (length, width, height) 5780×6850×3950 mm
Maximum moving weight 16000 kg
Maximum lifting height 300 mm
Maximum moving distance 1000 mm
Suitable for steel rail specifications  50~75(GB 2585) kg/m
Quantity of counterweights × Weight 3×1550 kg
Operation mode Handle operation
Moving head clamping indication Optional
Mobile head surveillance camera Optional
Switchable bulldozer 320 horsepower bulldozer





Feature

1) The equipment is equipped with a hydraulic clamping type transfer head, which can adjust the clamping force and clamping angle, and can adapt to the steel rail specification of 50-75kg/m. The maximum lifting weight of the transfer head is 16t, the maximum lifting height is 300mm, and the maximum transfer step distance reaches 1000mm. It can adapt to the transfer of conveyor belts with a width of less than 2500mm.
2) The equipment is reserved with a working device interface for bulldozers, which can be switched to use at any time. Provide spare parts such as transfer rollers and bearings for easy replacement and use.

Pipeline Machine Crawler Conveyor Horizontal Moving Equipment 0



About Suhigo

  • As China Specialist in Pipeline Construction Equipment Manufacturing., Suhigo can offer premium pipelayers or sideboom to help achieve the target of lifting pipe, moving to position and placing pipe. Suhigo Pipelayer Family have full line lifting weight pipelayers equivalent to International Pipelayer brand, size ranging from 25tons to 90tons. With decades experience, all pipelayers are designed to full safety, reliable performance and easy operation, can work flexible with different size pipeline construction projects throughout the globle. Up to now, Suhigo have worked with Oil Construction companies of CNPC, Sinopec and CPP.
  • Looking to acquire brand new pipelayers or sidebooms for your tender ? Check out the latest introduction of Pipelayers from Suhigo. Except for brand new pipelayers, we may have some used pipelayers in stock with good quality, welcome to contact us for more information.



HGPC30 Crawler pipe carrier for Pipeline construction Yellow pipe carring equipment Pipe Dia 1219mm transporter trailer 2HGPC30 Crawler pipe carrier for Pipeline construction Yellow pipe carring equipment Pipe Dia 1219mm transporter trailer 3







Why choose suhigo?

1) Suhigo is professional manufacturer, obtained ISO9001, ISO14001, GB/T28001 HSE Certificates, and CE certificate.

2) Suhigo has rich project experience with CPP, CNPC and SINOPEC branch oil construction companies.

3) Pipelayer cabin can be provided with ROPS & FOPS certificates, for option.

4) Suhigo product has exported to Russia, Middle Asia, Middle East, Africa etc.

5) Suhigo factory covers 30,000m2 and has 100+ workers including office, workshop and field service personnel.
