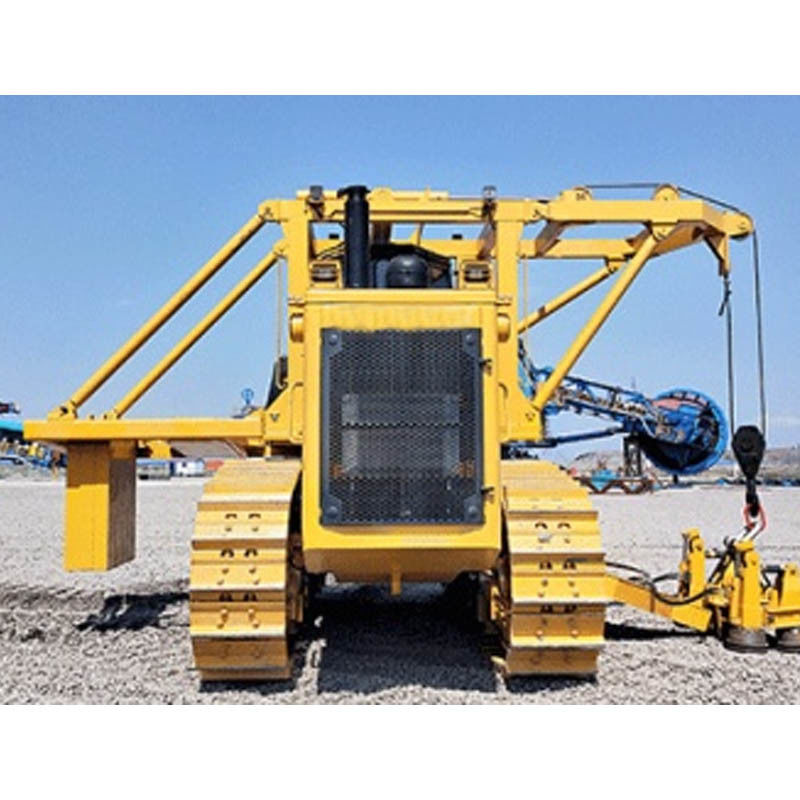

Pipeline Relocation Pipe Handling Equipment 2000RPM 235KW

Pipeline Relocation Pipe Handling Equipment 2000RPM 235KW

Pipeline Relocation Handling Equipment

Relocation Pipe Handling Equipment

2000RPM Pipe Handling Equipment

Place of Origin:

Hebei,China

Brand Name:

Suhigo

Certification:

ISO-9001

Contact Us

Request A Quote
Product Details
Name:
Pipe Handling Equipment
Country Of Origin:
Hebei, China
Power Supply:
AC+DC
Core Components:
PLC, Engine, Motor
Applicable Industries:
Manufacturing Plant, Loading Equipment,
Movement Direction:
Left, Right, Forward, Backward
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Interview
Packaging Details
Customized
Delivery Time
7-15 work days
Payment Terms
T/T
Product Description

High Quality Adjustable Hydraulic Clamping Type Pipeline Relocation Machine




Introduction

The entire machine is designed reasonably and has a compact structure, which is easy to dispatch, transfer, and transport. It can meet the needs of Chinese railway transportation and self crawling flat trailer transportation, and is suitable for conveyor belt relocation operations and general lifting operations.





Equipment model PYS70-2
Engine model Cummins NTA855-C360
Engine rated power/speed  235/2000 kW/rpm
Operating weight  41000 kg
Overall dimensions (length, width, height) 5780×6850×3950 mm
Maximum moving weight 16000 kg
Maximum lifting height 300 mm
Maximum moving distance 1000 mm
Suitable for steel rail specifications  50~75(GB 2585) kg/m
Quantity of counterweights × Weight 3×1550 kg

Walking speed

Forward 1st gear 3.6
Forward 2st gear 6.6
Forward 3st gear 11.5
Reverse 1st gear 4.4
Reverse 2st gear 7.8
Reverse 3st gear 13.5
Operation mode Handle operation
Moving head clamping indication Optional
Mobile head surveillance camera Optional
Switchable bulldozer 320 horsepower bulldozer





Feature

1) Complete safety devices to ensure safe relocation: The equipment is equipped with relocation head monitoring cameras, relocation head clamping instructions, and other relocation machine safety devices to ensure smooth and safe relocation work.

2) The engine adopts the Cummins engine (model NTA855-C360) manufactured with American technology, which adopts a unique PT fuel system and is turbocharged. It has the characteristics of light weight, high power, high torque, low fuel consumption, and easy maintenance.

3) High reliability of the transmission system: a bulldozer is used to modify the chassis, and a hydraulic torque converter with a large torque coefficient and smooth transmission is used. Easy maintenance of the transmission system: The transmission components are designed as modular assemblies, making disassembly and assembly easy and saving maintenance and assembly time.


Pipeline Relocation Pipe Handling Equipment 2000RPM 235KW 0



About Suhigo

  • As China Specialist in Pipeline Construction Equipment Manufacturing., Suhigo can offer premium pipelayers or sideboom to help achieve the target of lifting pipe, moving to position and placing pipe. Suhigo Pipelayer Family have full line lifting weight pipelayers equivalent to International Pipelayer brand, size ranging from 25tons to 90tons. With decades experience, all pipelayers are designed to full safety, reliable performance and easy operation, can work flexible with different size pipeline construction projects throughout the globle. Up to now, Suhigo have worked with Oil Construction companies of CNPC, Sinopec and CPP.
  • Looking to acquire brand new pipelayers or sidebooms for your tender ? Check out the latest introduction of Pipelayers from Suhigo. Except for brand new pipelayers, we may have some used pipelayers in stock with good quality, welcome to contact us for more information.



HGPC30 Crawler pipe carrier for Pipeline construction Yellow pipe carring equipment Pipe Dia 1219mm transporter trailer 2HGPC30 Crawler pipe carrier for Pipeline construction Yellow pipe carring equipment Pipe Dia 1219mm transporter trailer 3







Why choose suhigo?

1) Suhigo is professional manufacturer, obtained ISO9001, ISO14001, GB/T28001 HSE Certificates, and CE certificate.

2) Suhigo has rich project experience with CPP, CNPC and SINOPEC branch oil construction companies.

3) Pipelayer cabin can be provided with ROPS & FOPS certificates, for option.

4) Suhigo product has exported to Russia, Middle Asia, Middle East, Africa etc.

5) Suhigo factory covers 30,000m2 and has 100+ workers including office, workshop and field service personnel.
