Pipeline Relocation Machine Pipe Handling Equipment 300mm Lifting Height

Pipeline Relocation Machine Pipe Handling Equipment 300mm Lifting Height

Pipeline Relocation Machine

Relocation Pipe Handling Equipment

Hydraulic Relocation Machine

Place of Origin:


Brand Name:




Contact Us

Request A Quote
Product Details
Pipe Handling Equipment
Applicable Industries:
Manufacturing Plant, Loading Equipment,
Country Of Origin:
Hebei, China
Material Science:
High Strength Manganese Steel
Power Supply:
Core Components:
PLC, Engine, Motor
Movement Direction:
Left, Right, Forward, Backward
Save Manpower, Time, And Costs
Payment & Shipping Terms
Minimum Order Quantity
1 set
Packaging Details
Delivery Time
7-15 work days
Payment Terms
Product Description

The HYS70-2 Relocation Machine Is Equipped With A Hydraulic Clamping Type Relocation Head And Related Safety Devices



The braking system of the driving system is safe and reliable: the steering clutch is a normally closed, hydraulic separated steering clutch. When the operator releases the lever, the clutch will close, ensuring safety and reliability; The brakes are wet, floating, and band brakes with hydraulic assistance. By tightening the brake band and gripping the outer drum of the steering clutch, the final drive gear terminates transmission, thereby achieving turning or parking of the vehicle. The brake band is made of materials with high friction coefficient, which increases the positive pressure of the brake band and ensures that the moving machine has sufficient braking force.


Equipment model PYS70-2
Engine model Cummins NTA855-C360
Engine rated power/speed  235/2000 kW/rpm
Operating weight  41000 kg
Overall dimensions (length, width, height) 5780×6850×3950 mm
Maximum moving weight 16000 kg
Maximum lifting height 300mm
Maximum moving distance 1000 mm
Suitable for steel rail specifications  50~75(GB 2585) kg/m
Quantity of counterweights × Weight 3×1550 kg

Walking speed

Forward 1st gear 3.6
Forward 2st gear 6.6
Forward 3st gear 11.5
Reverse 1st gear 4.4
Reverse 2st gear 7.8
Reverse 3st gear 13.5
Operation mode Handle operation
Moving head clamping indication Optional
Mobile head surveillance camera Optional
Switchable bulldozer 320 horsepower bulldozer




1) The balance beam is connected to the trolley floating through rubber damping elements, reducing the impact load transmitted to the chassis system, further improving the equipment's passing performance on uneven terrain and adaptability to terrain during relocation.

2) Strong adaptability: able to adapt to working in environments with temperatures ranging from -40 ℃ to+60 ℃, altitudes below 3600 meters, and high dust levels.

3) Humanized operating space: the new hexahedron cab has a large internal space and a wide view. The driver's seat and armrest designed according to ergonomics can be easily adjusted up, down, forward and backward. The speed change, steering and throttle control are placed on the left, and the operating device is placed on the right. The operation process is more convenient and flexible.

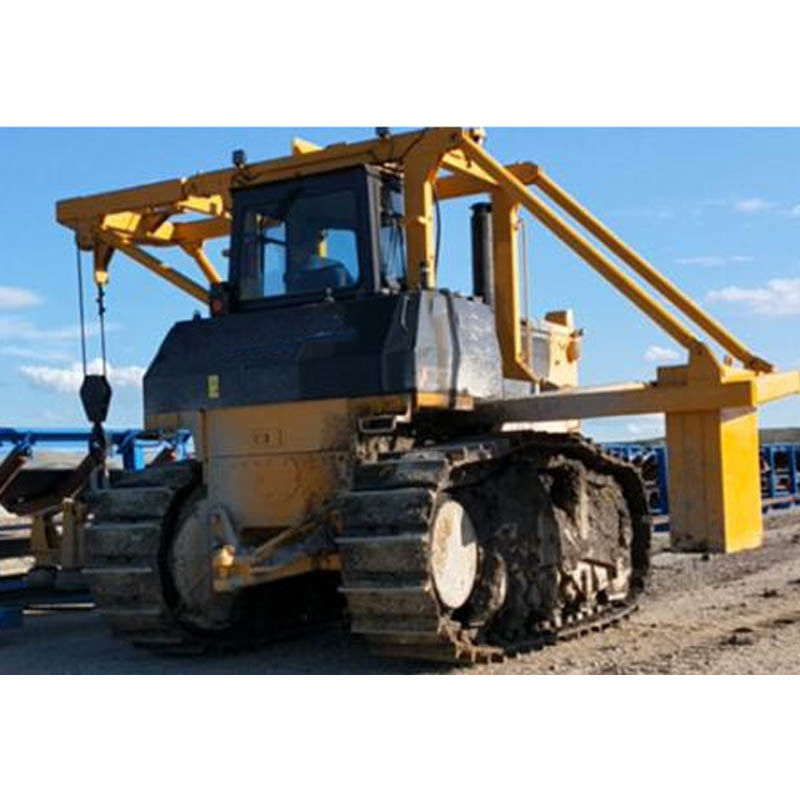

Pipeline Relocation Machine Pipe Handling Equipment 300mm Lifting Height 0

About Suhigo

  • As China Specialist in Pipeline Construction Equipment Manufacturing., Suhigo can offer premium pipelayers or sideboom to help achieve the target of lifting pipe, moving to position and placing pipe. Suhigo Pipelayer Family have full line lifting weight pipelayers equivalent to International Pipelayer brand, size ranging from 25tons to 90tons. With decades experience, all pipelayers are designed to full safety, reliable performance and easy operation, can work flexible with different size pipeline construction projects throughout the globle. Up to now, Suhigo have worked with Oil Construction companies of CNPC, Sinopec and CPP.
  • Looking to acquire brand new pipelayers or sidebooms for your tender ? Check out the latest introduction of Pipelayers from Suhigo. Except for brand new pipelayers, we may have some used pipelayers in stock with good quality, welcome to contact us for more information.


HGPC30 Crawler pipe carrier for Pipeline construction Yellow pipe carring equipment Pipe Dia 1219mm transporter trailer 2HGPC30 Crawler pipe carrier for Pipeline construction Yellow pipe carring equipment Pipe Dia 1219mm transporter trailer 3




Why choose suhigo?

1) Suhigo is professional manufacturer, obtained ISO9001, ISO14001, GB/T28001 HSE Certificates, and CE certificate.

2) Suhigo has rich project experience with CPP, CNPC and SINOPEC branch oil construction companies.

3) Pipelayer cabin can be provided with ROPS & FOPS certificates, for option.

4) Suhigo product has exported to Russia, Middle Asia, Middle East, Africa etc.

5) Suhigo factory covers 30,000m2 and has 100+ workers including office, workshop and field service personnel.
