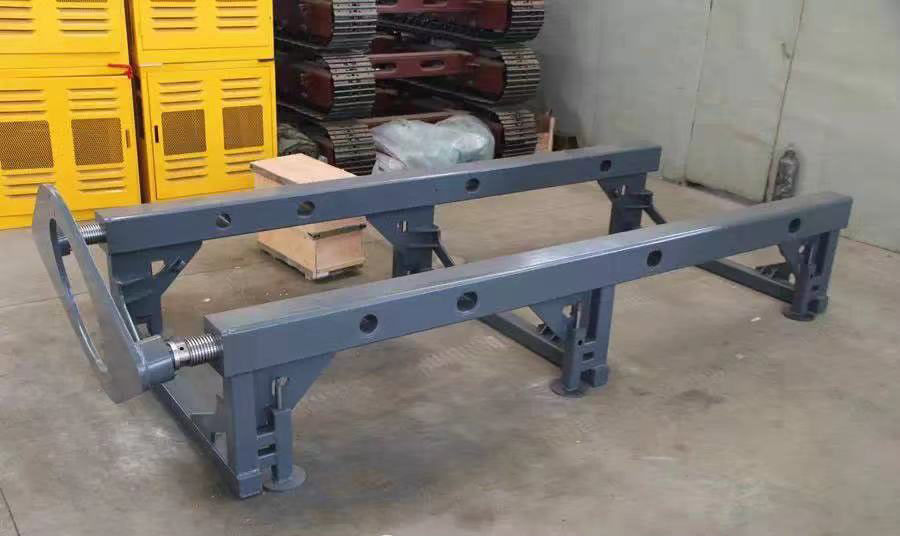

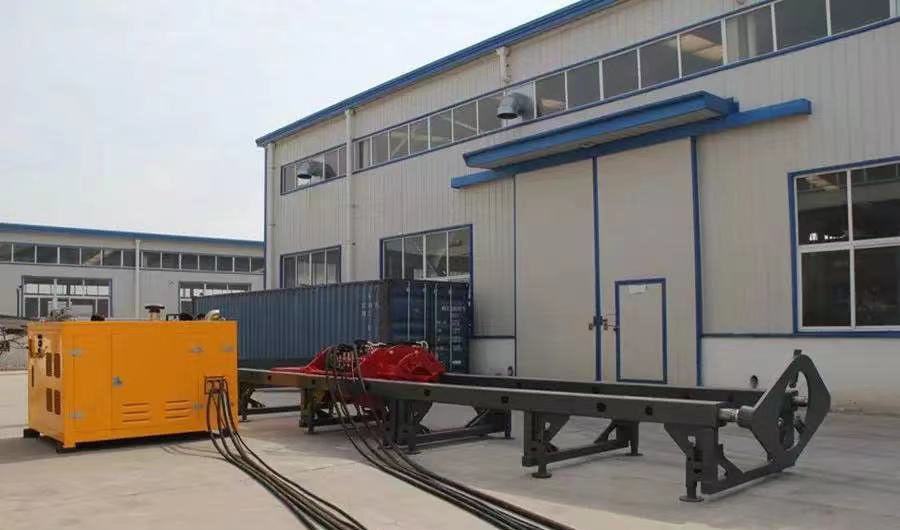

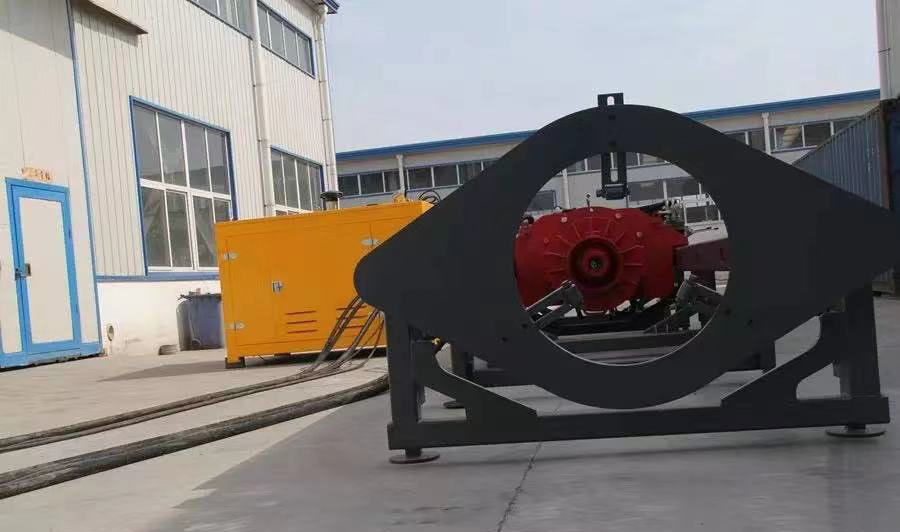

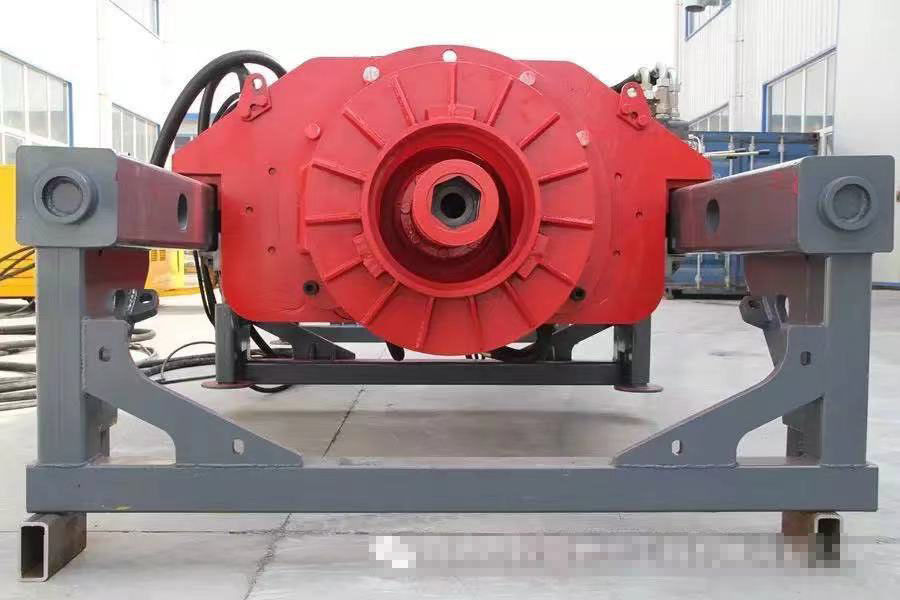

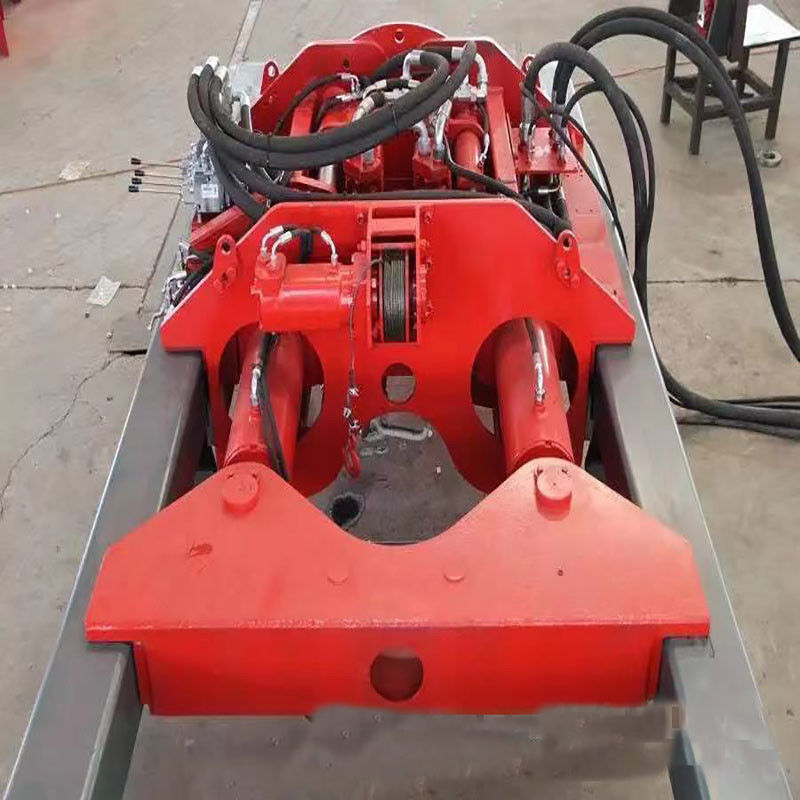

BGD-160 Auger Boring Machine
Introduction
The BGD-160 guided auger boring drill rig is a kind of underground pipe linelaying machine, lately developed by our company, which is energy saving, efficientand flexible in use.The optical guiding technique has been used in the drill rig for laying the pipesaccurately hit preset target. Fully meet preset azimuth requirement.The drill rig find its usage in pipe line laying for municipal underground waterdraining pipe line, heat supply pipe line, gas supply pipe line, water supply pipe line.power supply or communication cable underground passage construction and so on. Nodisruption for surface traffic and other facilities while pipeline installation with this guideoauger boring drill rig. lt can also be used for pipe shed support project of tunneling anorailway bed consolidation.
| Engine | |
| DCEC Cummins | 6CTA8.3-C215 |
| Rated Output at 2200rpm(Kw) | 160 |
| Electric system(V) | 24 |
| Fuel tank capacity(L) | 380 |
| Hydraulic system(Mpa) | 26 |
| Auxiliary hydraulic system pressure(Mpa) | 20 |
| Hydr.oil tank capacity(L) | 850 |
| Max.torque at low speed(Nm) | 28000 |
| High rotating speed(r/min) | 0-54 |
| Low rotating speed(r/min) | 0-27 |
| One step stroke(mm) | 1200 |
| Spindle clearance to ground(mm) | 650 |
| Rotary head drifting distance(mm) | 320 |
| Pushing speed(m/min) | 0-0.4 |
| 0-1.25 | |
| Pushing force(t) | 160 |
| Duct tube diameter(optional)(mm) | Ø400-Ø800 |
| Dimension of power pack(mm) | 2280*1890*1650 |
| Power pack weight(Kg) | 2800 |
Why choose suhigo?
1) Suhigo is professional manufacturer, obtained ISO9001, ISO14001, GB/T28001 HSE Certificates, and CE certificate.
2) Suhigo has rich project experience with CPP, CNPC and SINOPEC branch oil construction companies.
3) Pipelayer cabin can be provided with ROPS & FOPS certificates, for option.
4) Suhigo product has exported to Russia, Middle Asia, Middle East, Africa etc.
5) Suhigo factory covers 30,000m2 and has 100+ workers including office, workshop and field service personnel.
