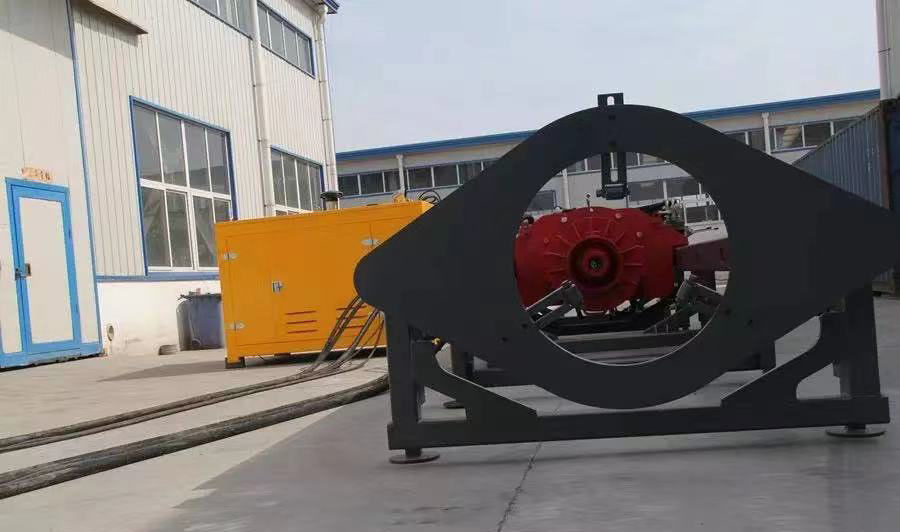

Underground Pipeline Laying System Drilling Rig, High-Quality Horizontal Guided Spiral Drilling Rig
Introduction
The product is mainly used for the precise laying of various municipal engineering projects such as urban underground drainage pipes, underground heating pipelines, gas supply pipelines, water supply pipelines, and various urban cable underground passages. The positioning accuracy of pipeline laying is not only accurate but also does not affect ground facilities and traffic order.
| Engine | |
| DCEC Cummins | QSB4.5-C160Ⅲ |
| Rated Output at 2200rpm(Kw) | 119 |
| Electric system(V) | 24 |
| Fuel tank capacity(L) | 380 |
| Hydraulic system(Mpa) | 24 |
| Auxiliary hydraulic system pressure(Mpa) | 20 |
| Hydr.oil tank capacity(L) | 850 |
| Max.torque at low speed(Nm) | 24000 |
| High rotating speed(r/min) | 0-50 |
| Low rotating speed(r/min) | 0-25 |
| One step stroke(mm) | 300 |
| Spindle clearance to ground(mm) | 673 |
| Rotary head drifting distance(mm) | 320 |
| Pushing speed(m/min) | 0-0.5 |
| 0-1.25 | |
| Pushing force(t) | 120 |
| Duct tube diameter(optional)(mm) | Ø325-Ø711 |

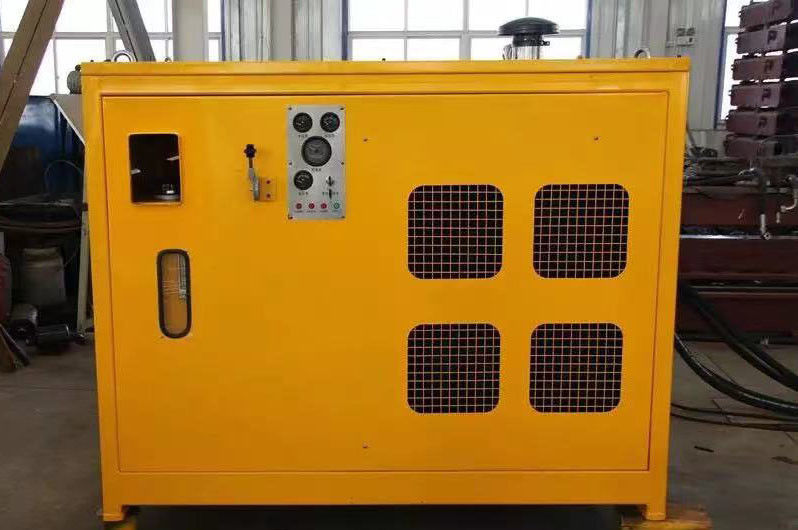

| Dimension of power pack(mm) | 2280*1890*1620 |
| Power pack weight(Kg) | 2400 |
1. High reliability:
The hydraulic overload protection system is reliable, safer, and has good waterproof performance.
2. Strong geological adaptability:
The speed can be adjusted without the need for slope, and different cutting wheels can be designed for different geological conditions. Therefore, it has strong adaptability.
3. High rock breaking efficiency:
The special design of a large eccentric cone crusher can improve the efficiency of secondary crushing and also make it easier to discharge rock blocks.
4. Good construction operability:
The lifting speed and slurry flow can be continuously adjusted, making it easier to achieve a balance between the lifting speed and slurry flow transportation.
